Type
|
EDF Jet |
Specification
|
Motor
|
MEGA Brushless
Motors 22/20/2 2875kv |
165g
|

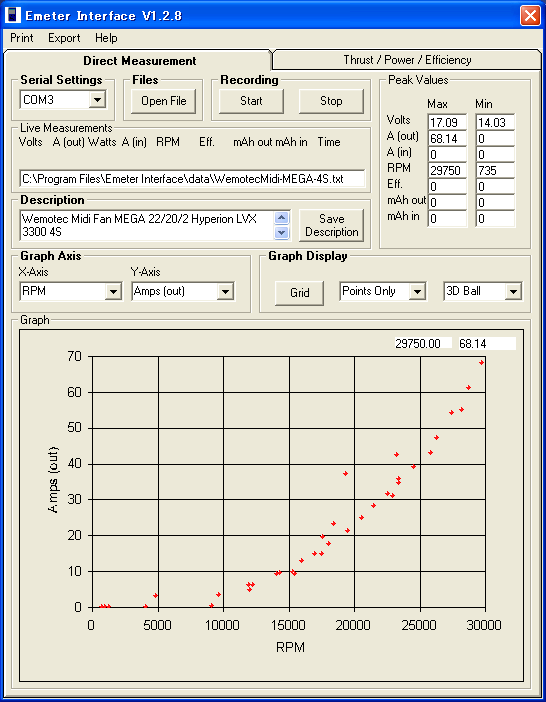

EDF Unit
|
Wemotec Midi Fan 90mm
|
105g
|
Battery |
Hyperion LVX3300-4S 20C-30C 66A
continuous 99A burst (w/connector)
|
336g
|
ESC |
Emax 70A Brushless ESC |
49g
|
BEC
|
S&T Switching BEC stDBEC5A |
12g
|
Receiver |
JR 77S |
20g
|
Servo
|
Waypoint W-084 x 2 Alieron
|
16.8g
|
GWS-PARKHPXF All flying tail
elevator |
19g
|
Waypoint W-175MP 2BB Retract
Gear
(wing)
|
34g
|
Waypoint W-092MB Retract Gear
(front)
|
10.8g
|
Size
|
Length |
960mm
|
Wing span |
1030mm
|
Wing Area
|
22.65dm² |
Wing Loading |
66.2g/dm² |
Flying Weight
|
1500g
|
Efflux Speed
|
197km/h
|
Static Thrust |

|
18N
|
Completed to build Main Wing,
power unit and bearing suported allflying tail. Theb will be made front
gear, Canopy latch, body color and much more ....
