UltraFly BAe HAWK




Type
 400 Class Pusher Jet
Specification
Motor
 Hyperion P1913-08M Kv2580 1.93:1 Gear Unit
72g
Propeller
 APC 6.0x4.0E
 N/A
Battery 3 cell LiPo 1900mAH - 11.1V 10C
 136g
ESC Waypoint W-EBLESC-25
 21g
Receiver MKS-PRO-RX8-72 7.2g
Servo
 Waypoint W-60BB x2
 13.2g
Size
 Length 730mm
Wingspan 720mm
Wing Area 9.8dm²
Wing Loading 48.47g/dm²
Flying Weight
475g
Current
 10.91V
 10.15A

UltraFly BAe HAWK is Taiwan Made Pusher JET.
I can make much more lighter. But it is not easy.  Because Light Weight Battery is unable to be setup center of gravity. This plane have to get on heavy (Nixx) batteries. It's old design. However this BAe Hawk scale plane takes me to actual JET Plane World !!

Jun 13 2007

Changed Power Unit APC 6x4 + Hyperion 1913-08M + 1.93:1 original gear box.
Result is very good. Current is only 10.15A !! Now I'm enjoing lightwait flight.

Photo 1
 Photo 2
Clik to enlarge
 Clik to enlarge

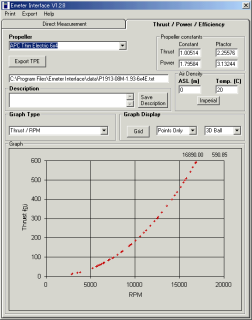

Amps-rpm chart rpm-thrust chart
