Electrajet

Delta wing Pusher

Japanese
  Overview   Specifications   Power Unit   Assembly report   Flight Report

Overview


click to enlarge ELECTRAJET W/IRON ON COVERING
Click to enlarge Taiwan made ARF Model, I have also Laser 20 made in Taiwan. Same design EDF model is also available. But this model is easy to power up pusher ! This model is covered film to foam like ELAPOR.  ELECTRAJET is bigger than Multi Plex Fun Jet and colorful. Maybe looks better.
Return to Top


Specifications

Type Electric Pusher Jet
Specifications
ESC Hobby Wing 60A 36g
Servo Towerpro SG90 x 2 19.4g
Receiver Craftroom Smart RX4 8g
Size
Length 737mm
Wingspan 845mm
Wing Area 23.24dm²
Net Weight 445g
Flying Weight approx. 580g
Wing Loading 24.96g/dm²
Wing design URL CG Design
Product URL
http://www.mth.com.tw/en/products/?method=detail&aid=21
Return to Top

Power Unit

Of cause my power unit is more powerful than standard. This is my way (^-^). Power is not enough only(?) 420W. This is 1st try.

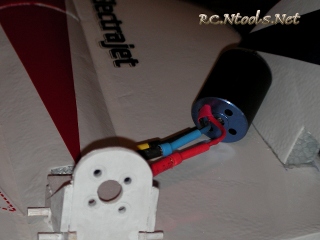

Original mount is poor so I made my orignal mount, 3mm polywood.
Motor
RCer War4 2T
3880rpm/v
74.5g
Battery ALP1800XP253S 1800mAh 120g
Motor mount Motor Mount
Return to Top


Assembly report

This model"s foam looks like a Multi Plex Fun Jet ELAPOR. Hard ware design isn't better than Multi Plex Fun Jet. Specially  Multi Plex Fun Jet motor mount is much better. However Electrajet is much stronger than Multi Plex Fun Jet. Which is totally better ? I think Electrajet is one of good for novice and intermediate pilots.
Return to Top

Flight Report

Report .....
Flight Video
Click to enlarge
Return to Top
