Alfa model

Alfa Model F-86


Overview

Click to enlarge
Click to enlarge
I have found that do not need build report. Because It is real ARF almost ready to fly. This model imported from USA. In Japan Littlebellanca is good R/C shop for buying F-86 Sabre !
Type
380 Class Electric Duct Fan Jet
Specification
ESC Waypoint EBLESC-25 25A Cont. 32A Burst 21g
Receiver Berg 4L /w X'tal
5g
Servo
W-60B × 2
13.2g
Size
Length 755mm
Wingspan 750mm
Wing Area 13dm²
Wing Loading 38.46g/dm²
Flying Weight (372g + Battery weight)
500g
Power
10.98V 20.95A 225.67W
Thrust

more than 540g

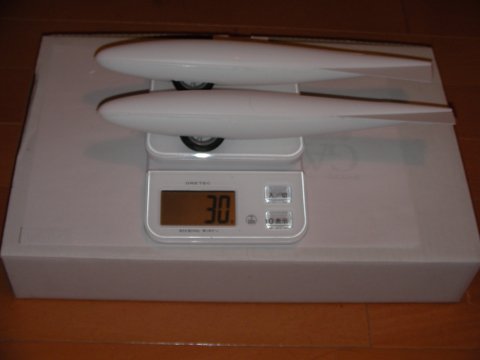

Drop tank

Drop Tank This drop tank is landing gear, isn't it ? This product is expensive. Because it is ABS no paint and like a plastic paper work. Must be need approx 35mm tire. F-86 kit is very nice. But optional parts 'Drop Tank' is not too good.

Power Unit

Power source was changed to big blashless motor Hyperion HP Y22L. It can drive over 48600 rpm, It is out of Alfa Model Chart.
Item
Model
Actual Mesurement
Weight
BL Motor
Hyperion Y22-L 5000kv
20.46A(225.67W)
70g
Duct Fan Unit
Alfa Model EDF 60/15 Mk.2
Static Thrust 483.62g / 48680rpm 32g
Battery Hyperion LVX1500-3S
20-30C
128g

Click to enlarge Chart
Amps - rpm graph Amps - rpm graph


Alfa Model recomanded motors
Motor type
Battery pack
RPM
Current
ESC
MP Jet 25-25/26 Mk.2 K1250HD /15C/ 3S 36000 10.0A TMM 1812-3
  K1500HD /8C/ 3S 34000 8.3A TMM 1210-3
MEGA 16/7/4 K1250HD /15C/ 3S 40000 12.0A TMM 2512-3
  K1500HD /8C/ 3S 36000 10.0A TMM 1812-3
MM 1215/12 K1250HD /15C/ 3S 40000 14.0A TMM 2512-3
  K1500HD /8C/ 3S 36000 11.0A TMM 2512-3
Hacker B20 22S K1250HD /15C/ 3S 38000 9.7A TMM 1812-3
  K1500HD /8C/ 3S 36000 8.5A TMM 1210-3

Flight Report

Show JP Page.
