FA-200 Aero Subaru


EP400 Aero Subaru "10e" Brush less

 Overview   Specifications   Build comment   Power Unit   Flight Report

Overview

Click to enlarge Kyosho Prima Classe SERIES Prima Classe SERIES
The Aero Subaru was recognized for its aerobatic ability and can fly loops and rolls. My motor choice is always bigger power than original design. How ability this R/C model ? (^-^)
1st getting the model on Rakuten Auction. Please show Flight Video .

Specifications

Type Scale Model Electric 10e
Model
Kyosho FA-200 Aero Subaru EP400
Specifications
ESC 25A
24g
Servo E-Sky EK2-0500 x 2
Ailerons 16g
GWS  NARO+F HP BB Elevators 10g
Waypoint W-092MB
Rudder 10.8g
Receiver Corona RP8D1 16g
Size
Length 815mm
Wingspan 1000mm
Wing Area 15.6dm²
Weight without battery 537g
Flying Weight approx 655g
Wing Loading approx 41.9g/dm²
Product URL
http://www.kyosho.com/eng/products/rc/detail.html?product_id=101474
Return to top

Building comment

Return to top

Power Unit

Motor
EMax BL2215-20
1200rpm/v
59g
Battery
Aerobatic Japan DP1600AB25-3S
120g

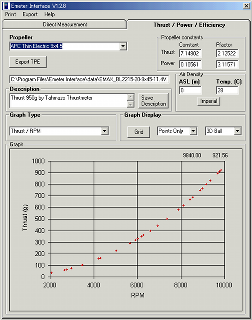

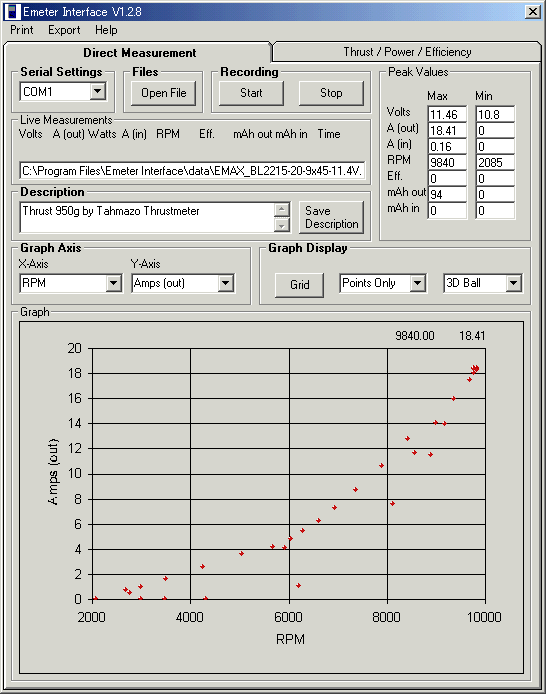

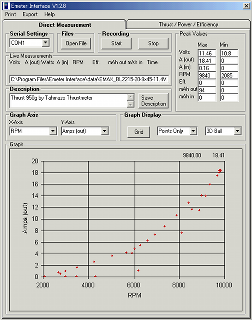

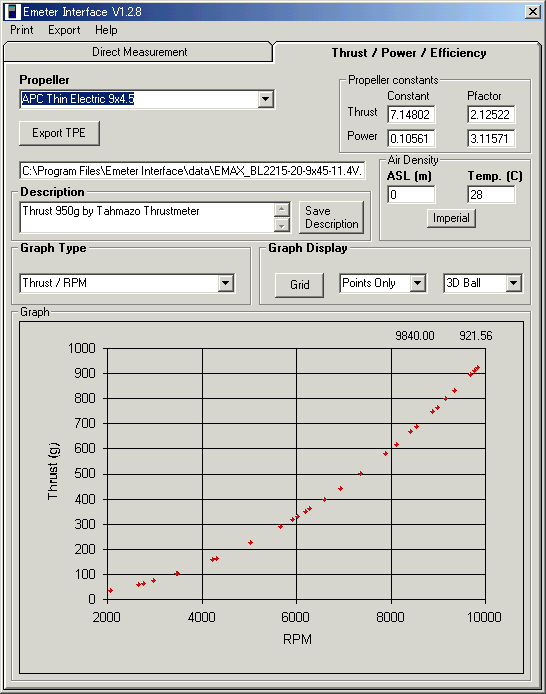

rpm : Amps chart rpm : thrust chart

Return to top

Flight Report

It is stable flight. Acrobat performance is 'roll is not too good, loop is very good'. Comparing other scale model, it is easy to control.

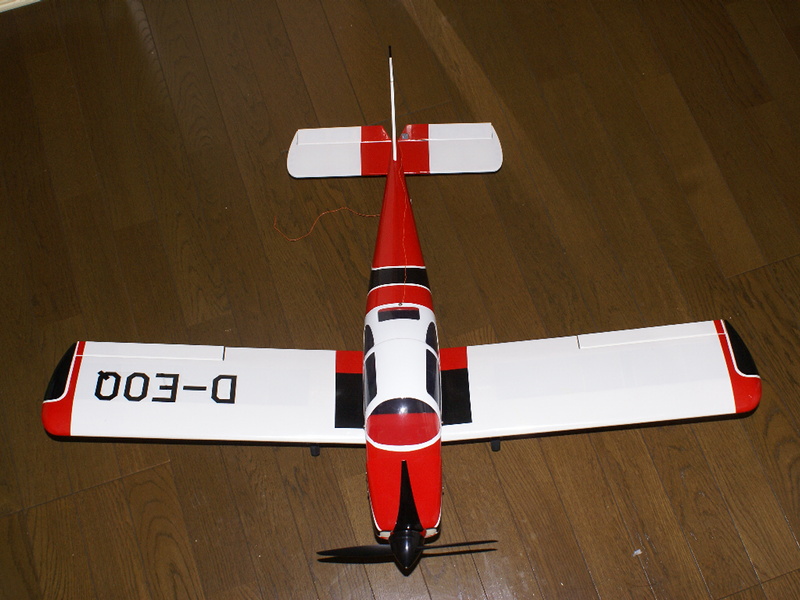

Photo FA-200 Maiden Aero Subaru FA-200




HQ 2M
HQ 2M

Youtube Youtube
Return to top

Produced & Designed
 Nobby Noboru Hirano
