Kyosho JET Illusion

 Overview   Specifications   Build comment   Power Unit   Flight Report

Overview

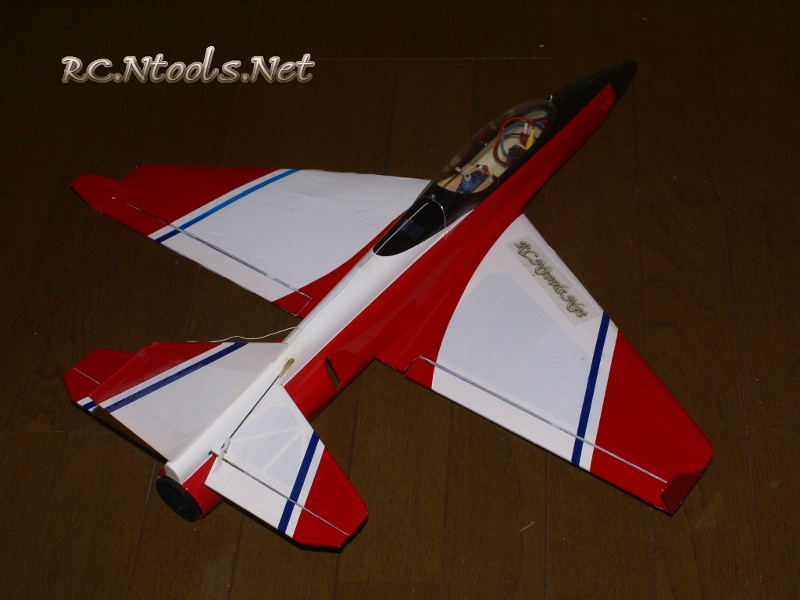

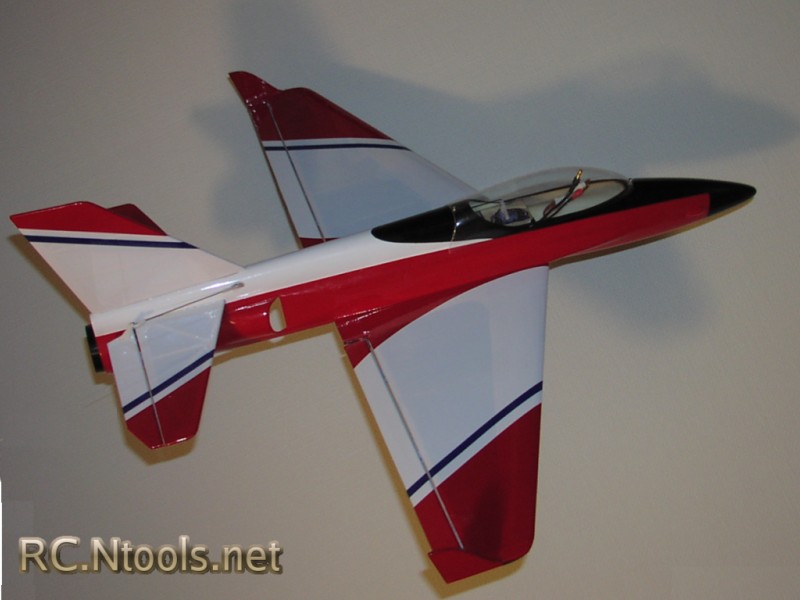

Click to enlargeI like EDF Jet and that flys faster. This model includes 45mm one peace fan & motor EDF unit. The fan rpm is 64000 or more. I found this model can fly 170km/h in one of You Tube video. Of cause its flight was using dive for acceleration.

Specifications

Type
Electric Duct Fan Jet
Specifications
ESC enESC 15A for Jet Impact
10g
Receiver New Version CastleCreation Berg MicroStamp 4 8g
Servo
W-084 × 2
16.8g
Size
Length 635mm
Wingspan 600mm
Wing Area 8.5dm²
Net Weight 273g
Hyperion LVX
800mAH
Flying Weight 338g
Wing Loading 39.76g/dm²
Power
10.68V 13.39A 143W
Product URL http://www.kyosho.com/eng/products/rc/detail.html?product_id=100448
Return to top

Bulding comment

Battery mounter is no good structure. For changing battery needed screw driver. Mig-15 and F-86 Saber is much better.
Return to top

Power Unit

RC Technica Jet-impact on board EDF is same one. I feel the EDF is small.

Item
Model
Actual Mesurement

Duct Fan Unit
One Peace Fan & BL Motor
65172rpm.
30g
Battery Hyperion 800mAH 20C-30C
64g
Static Thrust
270g

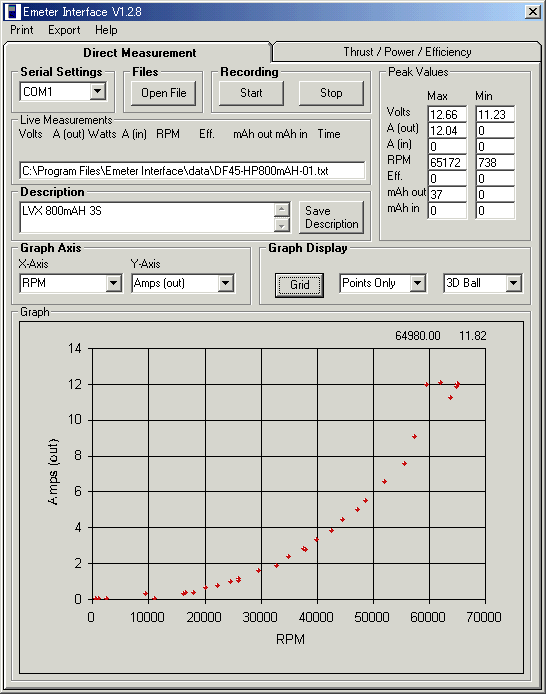

Power  (Amps-rpm graph chart)
124.5W
Click to enlarge

Return to Top

Flight Report

Ordinary Maiden Flight, trim adjustment and check every thing and more. It is very busy. But this model can fly stable so easy to adjust everything. Flight is very nice feeling. No problem for Acrobat flight Loop invert and so on. Anyhow I want more power for more speed.
Flight Video Flight Video
Click to enlarge Click to enlarge Video Click to Play
Return to Top
