Super Falcon


25 Class Jet.


Producted by  KK Hobby

Overview


25 class editions of BVM Kingcat can be said. JET Engine (the turbine engine) it loads the original, but this electric motor or 25 class engines is standard.  Just now I have started to make EDF mount unit and ARF model.

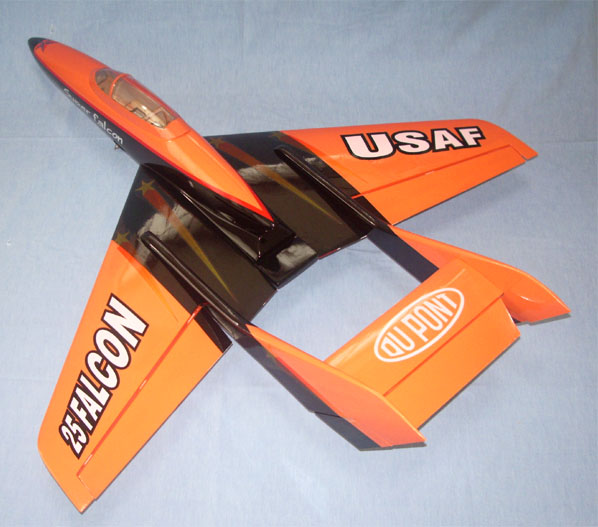

click to enlarge click to enlarge
click to enlarge

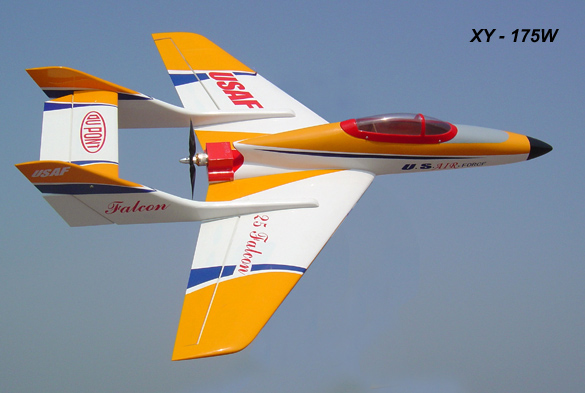

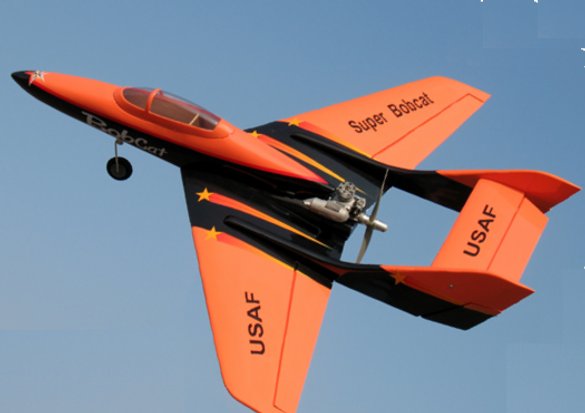

これはメーカのオリジナル写真で色は異なりま す。完成後入替予定 KKHobby撮影

Buildup Report

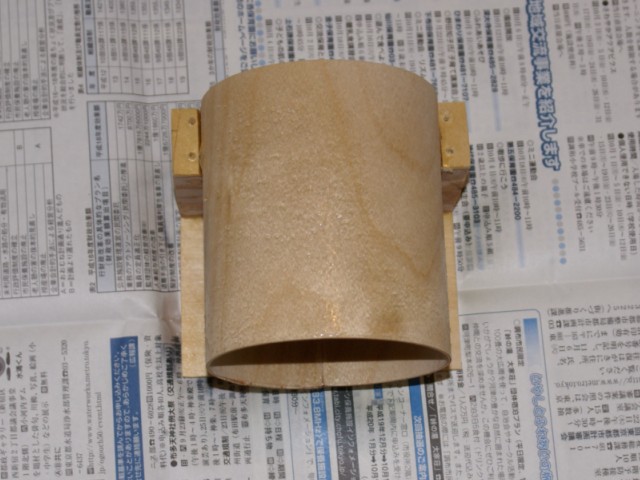

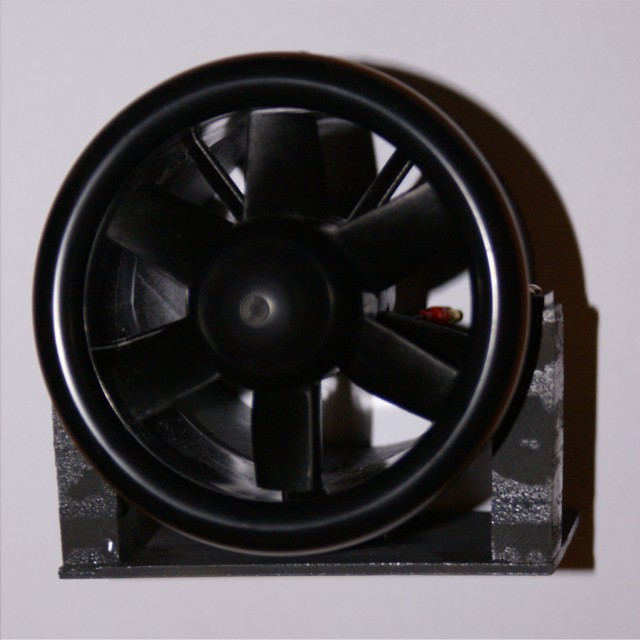

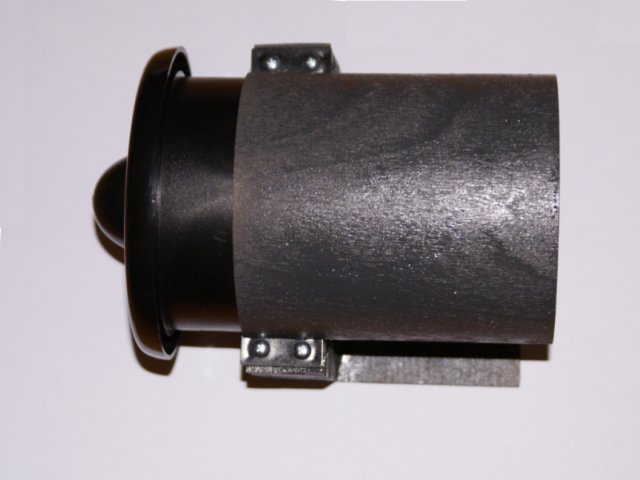

Wemotec Midifan(90mm) and Mount structure.

click to enlarge click to enlarge click to enlarge



Specifications

Type Electric Duct Fan Jet
Specifications
ESC OPT 70A
58g
BEC
UBEC
11g
Servo Waypoint W-150 x 2
33g
Waypoint W-084 x 4
18g
Receiver HP-DSP*6-FS
16g
Size
Length 1175mm
Wingspan 1000mm
Wing Area 25.2dm²
Flying Weight 1800g
Wing Loading 71.4g/dm²
Battery
Hyperion LVX 3300mAH 4S
339g


Power Unit





Duct Fan Unit
Wemotec Midi Fan 90mm
30000rpm
278g
MEGA ACn22/20/2
Battery Hyperion LVX 3300mAH 4S 339g

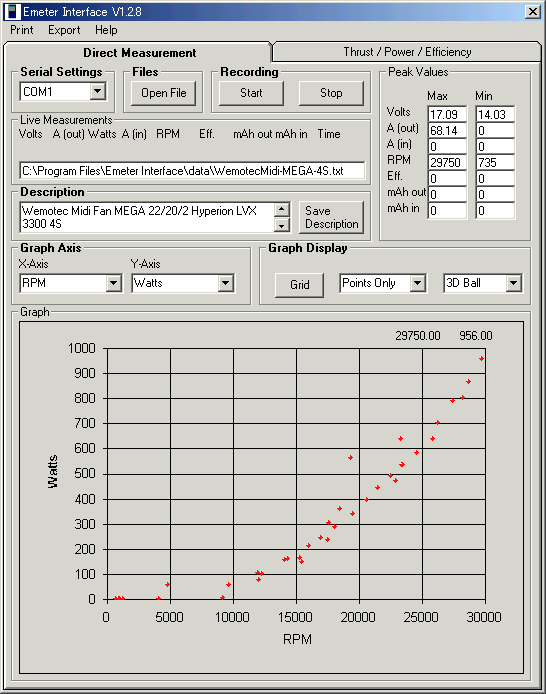

Amps-rpm chat

Thrust 2075g*1 195.6km/h
*1 Measurement data


Produced & Designed
 Nobby Noboru Hirano
