| HET Typhoon EDF
2W 3W 4W 2W-20 |
|
| Motor Shaft |
3.17mm |
| Motor Size |
28mm dia. x 37mm (42mm 2W-20) |
| Kv |
4580 (2W) 2980(3W) 2200(4W)
3450(2W-20) |
| Max. Current |
38(2W) 30(3W) 22(4W) 65(2W-20) |
| Max. Power |
350W(2W 3W 4W) 700W(2W20) |
| Weight |
78g (98g 2W-20) |
| Application |
2W Wemotec
Mini Fan 25.5A 3S
255W 150km/h VASAFAN64 3W Wemotec Mini Fan 15.5A 4S 192W 130km/h 2W-20 Wemotec Mini Fan 50A 4S 650W 240km/h, thrust over 1Kg |
| I cannot find to
buy in Japan. However Typhoon BL Motor is one of best choice for
Minifan 480. |
|

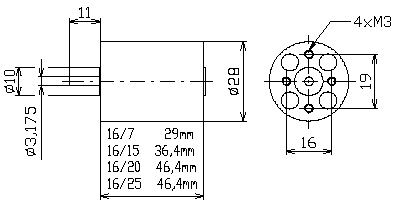

Return to Top| MEGA Brushless
Motors 16/15/x |
|
| Motor Shaft |
3.17mm |
| Motor Size |
28.0mm dia. x 36.4mm (L) |
| Kv |
16/15/2 4600kv 16/15/3 3000kv |
| Max. Current |
16/15/2 35A 16/15/3 30A |
| Weight |
76g |
| Application examples | 16/15/2 WEMOTEC Mini-Fan 480
current
up to 38A 16/15/3 Kyosho 70mm EDF 3S LiPo |
| Web Site URL |
http://www.megamotor.cz/ |
| MEGA ACn 16 set of
6-pole BL motors. ACn 16 requires ESC that supports high speed advanced
timing. ESC's MPU must be high speed. |
|
| Click to enlarge | |
|
Return to Top |
| See also Middlesize2 |
|
| RCer Warp4 BL-4
3880kv |
|
| Motor Shaft |
3.00mm |
| Motor Size |
28.0mm dia. x 34.5mm (L) |
| Kv |
3880 rpm/V |
| Max. Current |
32A cont. 60A (20sec) |
| Weight |
74.5g |
| Application examples | Aircraft EDF-68 APC
S400 4.1x4.1 3cell LiPo up to 43A |
| Web Site URL |
http://www.aircraft-world.com/prod_datasheets/rcer/bl4-15.htm http://www.aircraft-japan.com/prod_datasheets/rcer/bl4-15.htm |
| Warp4 2turn is good
! However shaft dia. is 3.0mm, Available adapter in Aircraft Japan for
Mini
fan 480. |
|
| Click to enlarge | |
) |
Return to Top |
| Hacker B40S-10 compatible Motor made by Keda Model. However Hackes's is much better. | |
| Motor Shaft | 3.17mm |
| Motor Size |
28mm dia. x 47mm (L) |
| Kv |
3900rpm/V |
| Max. Current | 40A |
| Weight |
137g |
| Working Voltage |
7.4 - 14.8V |
| Application examples |
Mini
FAN 480(EDF-68) 380W.
This motor is between Typhoon 2W-2(700w) and 2W (250W). APC S400 4.1x4.1 10.07V 40.98A 34568rpm |
Return
to Top

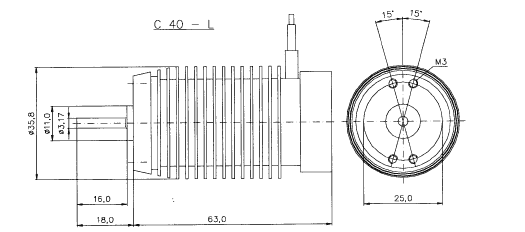

| Hacker Brushless
Motors C40 10L 3000kv |
|
| Motor Shaft |
3.17mm |
| Motor Size |
35.8mm dia. x 63mm (L) |
| Kv |
3000 rpm/V |
| Continuous Current |
35A |
| Max. Current 15sec 700W |
60A |
| Weight |
187g |
| Timing |
0 - 8 deg |
| Switching Freq. |
8KHz |
| Application examples |
Midi
FAN 3 cells Li-Po 580W,
current up to
60A. |
| Web Site URL |
http://www.hacker-motor.com |
Return
to Top

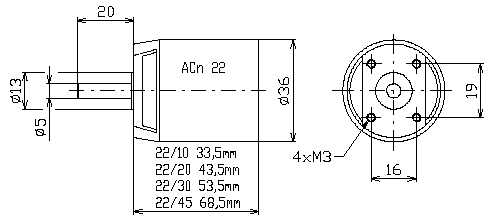

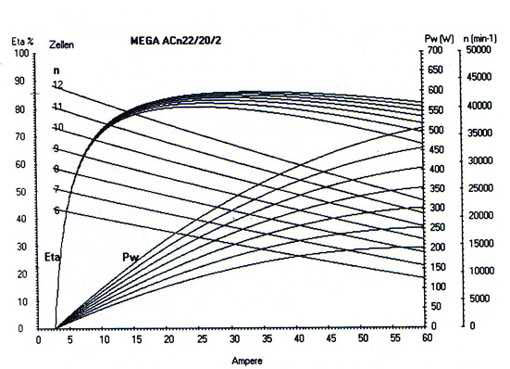

| MEGA Brushless
Motors 22/20/2 2875kv |
|
| Motor Shaft |
5mm |
| Motor Size |
36.0mm dia. x 43.5mm (L) |
| Kv |
2875 rpm/V |
| Continuous Current |
60A? |
| Max. Current |
70A |
| Weight |
165g |
| Application
examples |
Midi FAN 3 cells Li-Po 450W, current up to 50A. thrust 800g |
| Midi FAN 4 cells Li-Po 956W, current up to 70A. thrust 2125g *1 | |
| glider models up to 3,5 kg, gear ratio 1:3, propeller 14" 45A | |
| Web Site URL |
http://www.megamotor.cz/ |
| MEGA ACn 22 set of
6-pole BL motors. ACn 22 requires ESC that supports high speed advanced
timing. MPU for ESC must be high speed. |
|
