Mig-15

Japanese

Overview

MIG 15 is good Radio Controlled Plane that is recommended by Hobby Lobby. This R/C Model was got on Yahoo Auction, Original is released few years ago. This Mig-15 is available Alfamodel R/C model.  is famous seller in Japan. Now I have just had two Alfamodel EDF Jets. Which is stable and faster F-86 Saber or Mig15 ?

Specification

Type
 Electric Duct Fan Jet
Specification
ESC enRoute enESC-18ALC 19g
Receiver MKS-PRO-RX8-72 7.2g
Servo
 W-60B × 2
13.2g
W-084 8.4g
Size
 Length 760mm
Wingspan 800mm
Wing Area 12.6dm²
Net Weight 335g
Hyperion LVX
1500mAH		 Flying Weight 463g
Wing Loading 36.75g/dm²
Power
 10.68V 13.39A 143W

Power Unit

Item
 Model
 Actual Mesurement
BL Motor
 HYPERION Y22-S 4200 kv 13.39A(143W)
 48g
Duct Fan Unit
 ALFA model 60/15 Mk.2
 42980 rpm. 33g
Battery Hyperion LVX1500-3S 20C-30C
 128g

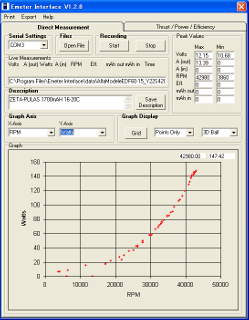

Static Thrust   chart
 more than 380g

Alfamodel, their recommended motor is MP jet 25-25/26 Mk.2, Mega 16/7/4, MM 1215/12, Hacker B20 22S or Speed 300/6V. However I chose HYPERION Y22-S 4200 kv. The choice was got very nice result about 13A 42980 rpm. This is better than MEGA 13/7/4 12A 40000 rpm.

Alfa Model recommend
Motor type
 Battery pack
 RPM
 Current
 ESC
MP Jet 25-25/26 Mk.2 K1250HD /15C/ 3S 36000 10.0A TMM 1812-3
  K1500HD /8C/ 3S 34000 8.3A TMM 1210-3
MEGA 16/7/4 K1250HD /15C/ 3S 40000 12.0A TMM 2512-3
  K1500HD /8C/ 3S 36000 10.0A TMM 1812-3
MM 1215/12 K1250HD /15C/ 3S 40000 14.0A TMM 2512-3
  K1500HD /8C/ 3S 36000 11.0A TMM 2512-3
Hacker B20 22S K1250HD /15C/ 3S 38000 9.7A TMM 1812-3
  K1500HD /8C/ 3S 36000 8.5A TMM 1210-3
