400-540 Class

Motor 180-400 Class 500 over

All data is actual measurement. However please have to understand these are one of sample.

   EMAX 2215/20   enPower3214-1200   Hyperion Z2213  Hyperion Z3007   RCer Warp4   Waypoint W-E2215

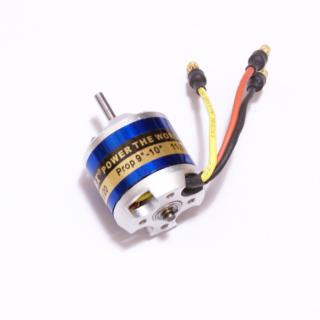

EMAX BL2215-20

Click to enlarge
   Return to Top
Kv
 1200rpm/V
Max Efficiency Current
 8 - 13A ( > 75%)
Max Efficiency 82%
Max. Current
 22A  60sec
LiPo cells 2 - 3
Shaft Diameter
 3mm
Stator Size
 22mm x 15mm
Weight
 59g
Puroduct URL
 http://emax.modeldiy.com/BLUESKY.htm
*1 Measurement data
A
 32mm
 B
 19 / 16mm
 C
 47mm
 D
 28.4mm
 E
 3mm
 F
 12mm

   Return to Top
Emax BL2215-20 Measurement data by Hyperion Emeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 10x7 10.57
 *3  25.00 7875
 264.25
 84km/h
 968.3 162
 61.3
KK Hobby 10x6
 11.10
 *3  26.19
 9060
 290.71
 83km/h
 *2 1020.0 N/A
 N/A
APC Thin Electric 10x5 10.68
 22.03 8850
 235.28
 67km/h
 1107.8
*2 1050.0
 161
 68.4
APC Thin Electric 9x9
 10.50 *3  27.16 7575
 285.18
 104km/h
 *1 853.0 158
 55.4
APC Thin Electric 9x6 10.71 20.95 9300
 224.91
 85km/h
 994.2
*2 1020.0
 159
 70.7
APC Thin Electric 9x4.5 10.71
   18.14 9840
 195.91
 67km/h
 948.9
*2 950.0
 135
 68.9
KK Hobby 8x8 10.91 17.11 10230
 186.67
 125km/h
 *2 770.0
 N/A N/A
APC Thin Electric 8x6 10.82
 18.41 9870
 199.20
 90km/h
 822.1
*2 880.0
 153
 76.8
APC Thin Electric 7x5 11.03
 11.50 11640
 126.95
 89km/h
 599.4
*2 620.0
 104
 82.0
*1 Predicted value.  3cell best choice.    Aeronaut k=22.765
*2 Measurement data by Tahmazo Thrustmeter. *3 Over load

enRoute enPower 3214-1200

  Hyperion Z3007   Return to Top
Motor Shaft
 3.17mm
Motor Size
 32.5mm dia. x 26.5mm (L)
Kv
 1200 rpm/V
Continuous Current
 13A-18A
Max. Current
 23A 30sec
Weight
 65g
LiPo cells
 2-4
Application
 APC 7X5E 10.1V 14.3A 11130rpm
APC 8x6E 11.21V 21.06A 10470rpm
APC 9X4.5E 10.1V 20A 10120rpm
APC 10X5E 10.1V 23A 9420rpm
Web Site URL
 http://www.enroute.co.jp

Hyperion Z2213 20Turn

Hyperion Z3007   Return to Top
Motor Shaft
 3mm
Motor Size
 28mm dia. x 42mm (L)
Kv
 1025 rpm/V
Continuous Current
 8A-14A
Max. Current
 18A
Weight
 53g
LiPo cells
 2-3
Application Aeronaut E Prop Glass 8.5x6 10.1V 11.7A 9270rpm
APC E 8x6 10.1V 14.8A 8700rpm
APC E 9x6 10.1V 16.1A 8310 rpm
Web Site URL
 http://www.aircraft-japan.com/
prod_datasheets/hp/z22/z22all.htm

Hyperion Z3007

Hyperion Z3007   Return to Top
Motor Shaft
 4mm
Motor Size
 37mm dia. x 31.8mm (L)
Kv
 1050 rpm/V
Continuous Current
 13A-18A
Max. Current
 25A 30sec
Weight
 75g
LiPo cells
 2-3
Web Site URL
 http://www.aircraft-world.com
http://www.aircraft-japan.com
http://www.aircraft-japan.com/prod_datasheets/
hp/z30/z3007spec.htm

Hyperion Z3007-30 Measurement data by Hyperion Emeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 11x5.5 10.84
 23.70
 8160
 256.9
 68
 1284.4
 188
 73.2
APC Thin Electric 10x7 10.87
 23.97
 8280
 260.6
 88
 1075.6
 190
 72.9
APC Thin Electric 10x5 10.96
 19.33
 8970
 213.1
 68
 1139.1
 168
 78.9
APC Thin Electric 9x9
 10.27 26.29 7575 270.0 104 *1 853.0 158 58.5
APC Thin Electric 9x6 10.66 19.00 9120 202.5 83 955.3 150 74.1
APC Thin Electric 9x4.5 10.61
   15.55 9630
 165.0
 66
 906.4
*2 980		 126
 76.4
APC Thin Electric 8x6
 14.82
 26.08
 11920
 386.5
 109
 1231.0
 305
 78.9
APC Thin Electric 8x6 10.91
 15.90
 9150
 162.6
 84
 698.6 116
 71.4
APC Thin Electric 8x4 14.31
 16.57
 12750
 237.1
 78
 1097.5
 203
 85.6
Aeronaut 8.5x6 Glass 13.88
 19.44 11970
 269.8 109
 *1 1201.9
 209
 77.5
Aeronaut 8.5x5 Glass 13.94
 16.41
 12420
 228.8
 95
 1078.3
 166
 72.6
*1 Predicted value.  3cell best choice.  4cell best choice.    Aeronaut k=22.765
*2 Measurement data by Tahmazo Thrustmeter.

RCer Warp4

Click to enlarge
  Return to Top

RCer BL4-15 Warp4
Motor Shaft
 3.00mm
Motor Size
 28.0mm dia. x 34.5mm (L)
Weight
 74.5g
Turns
 2T
 3T
 4T
 5T
 6T
Kv
 3880
 2580
 1810
 1430
 1190
Max. Current Continuous
 32A
 26A
 22A
 18A
 14A
Max. Current 20sec
 60A
 40A
 30A
 24A
 18A
Application examples Aircraft EDF-68  APC S400 4.1x4.1 3cell LiPo up to 43A
Web Site URL
 http://www.aircraft-world.com/prod_datasheets/rcer/bl4-15.htm
http://www.aircraft-japan.com/prod_datasheets/rcer/bl4-15.htm

Waypoint W-E2215

      Return to Top
Motor Shaft
 3mm
Motor Size
 27.8mm dia. x 32mm (L)
Kv
 1039 rpm/V
Continuous Current
 8A-16A
Max. Current
 18A
Weight including connector 59g
LiPo cells
 2-3
Web Site URL
 http://www.aircraft-japan.com/prod_datasheets/
wpoint/eblesc/w-manual.htm
*1 Measurement data by Tahmazo Thrust meter.

Waypoint W-2215-18 Measurement data by Hyperion Emeter & Tahmazo thrustmeter.
Propeller Volt Amps rpm Epwr Speed Chart
 *1 Thrust Ppwr Eff.
APC E 8x6 10.86
 16.20
 9420
 175.9
 86km/h thrust 680g 129
 73.3
APC E 9x4.5 10.89
 15.66
 9360
 170.5
 64km/h thrust 860g 116
 68.0
APC E 9x6 10.82
 18.41
 8730
 199.2
 80km/h thrust 950g 131
 65.8
GWS 9x5 HD 10.91
 15.82
 9570
 172.6
 73km/h thrust 890g 119
 68.9
GWS 10x6HD 10.77 19.60
 8370
 211.1
 77km/h thrust 960g n/a n/a
KK Hobby 8x8 10.91 15.44
 9750
 168.5
 119km/h n/a 720g n/a n/a
*1 Measurement data by Tahmazo Thrust meter.
