Large Size Motors 1

TinySize  SmallSize Mid.SmallSize MiddleSize1 MiddleSize2 LargeSize2

     PA Thrust 30   Turnigy SK-3536   Hacker A30-L   Hacker A30-XL   Hacker A40-L   Turnigy D3639   Turnigy D3648

Precision Aerobatics Thrust 30


 Click to enlarge
Thrust 30 Return to Top

Motor Shaft  D2 x L2 5mm x 15.5mm
Motor Size   D1 x L1 37.2mm dia. x 37mm (L)
Kv
 905 rpm/V
Max efficiency Current 18A - 28A
Max. Current (15 sec) 39A
Max. Input Power
 420W
Weight including connector 109g
Pole
 14
LiPo cells
 2-4
Web Site URL
 http://www.thrustmotors.com/thrust30.html

PrecisionAerobatics Thrust 30
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC E 11x5.5 10.66
 23.0 8415
 245.18 71km/h 1372.6
 208 84.8
APC E 11x7 *1 11.02
 27.91
 7920
 307.57
 84km/h
 1379.5
 227
 73.8
APC E 12x6 *1 10.56
 28.13
 7560
 297.05
 69km/h 1567.7
 228
 76.8
APC E 13x6.5 *1 10.32
 34.56
 6810
 356.66
 67km/h 1713.9
 244
 68.4
ACP E 13x4
 10.44
 28.1
 7890
 293.36
 48km/h 2420.0
 224
 76.4
*1 Measurement data by Hyperion Emeter.

TGY AerodriveXp SK Series 35-36 1400Kv/550w*


 Click to enlarge
SK3536 Return to Top

Motor Shaft  D2 x L2 4mm x 10mm
Motor Size   D1 x L1 35mm dia. x 39mm (L)
Kv
 1400 rpm/V
Rated Power 550W
Max. Current 45A
Turns
 5
Pole
 14
Weight 115g
LiPo cells
 3-4
Web Site URL
 http://www.hobbyking.com/hobbyking/store/__7073__TGY_AerodriveXp_SK_Series_35_36_1400Kv_550w.html

TGY AerodriveXp SK3536
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC S 7x6 13.5
 37.2
 16126
 502.6
 147
 1123
 388.4
 77.3
APC S 7x7 10.88
 30.5
 13270
 331.5
 142
 804
 261.4
 78.9
APC E 8x6 10.5
 36.2 12425
 379.7 114 1287
 295.8 77.9
APC E 8x8 10.5
 48.4
 11702
 507.8
 143
 1210
 380.1
 74.9
*1 Measurement data by Hyperion Emeter.


Hacker A30-L

 click to enlarge


Return to Top

Motor Shaft  D2 x L2 5mm x 17mm
Motor Size    D1 x L1 37.2mm  x 42.85mm
Turn
 10
 12
Kv rpm/v
 1185
 1000
Continuous Current 29
 25
Max. Current 15sec.
 40
 37
LiPo cells 3-4
Application 9x4.5-12x6.5
 10x5 - 14x9
Max Power 15sec
 500W
Weight 143g
Product URL
 http://www.hacker-motor.com/deutsch/motor-a30.html


Hacker A30-10L
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 11x5.5 11.0
 39.6
 9500
 436.1
 80
 1783.6
 309
 70.9
APC Thin Electric 10x5 10.5
 28.5
 10146
 299.4
 77
 1472.0
 249
 83.2
APC Thin Electric 10x5
 13.0
 40.8
 12212
 530.4
 93
 2164.6
 453
 85.4
APC Thin Electric 9x6 14.0
 21.2
 10879
 296.7
 99
 1370.2
 259
 87.3
Hacker A30-12L
APC Thin Electric 14x7 9.0
 34.0
 6362
 340
 68
 N/A
 276
 90.2
APC Thin Electric 12x6 10.5
 38.7
 8186
 406
 75
 1857.4
 298
 73.3
APC Thin Electric 11x5.5 10.5
 30.2
 8877
 317
 74
 1540.6
 248
 78.2
APC Thin Electric 10x5 14.0
 29.5
 11413
 413
 87
 1880.4
 364
 88.1
*1 Predicted value.

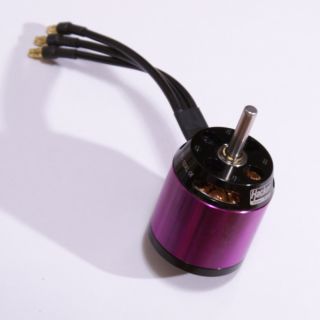

Hacker A30-XL*

 Click to enlarge

  Return to Top
Motor Shaft  D2 x L2 5mm x 17mm
Motor Size    D1 x L1 37.2mm  x 48.85mm
Turn
 8
 10
 12
Kv rpm/v
 1100
 900
 700
Continuous Current 35
 30
 25
Max. Current 15sec.
 45
 42
 37
LiPo cells 3-5
Application 9x4.5-12x6.5
 10x5 - 14x7
 10x5 - 14x9
Max Power 15sec
 650W
Weight 177g
Product URL
 http://www.hacker-motor.com/deutsch/motor-a30.html


Hacker A30-10XL
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 14x7 10.5
 42.1
 6967
 443.6
 80km/h
 *1 2124.0
 372
 84.2

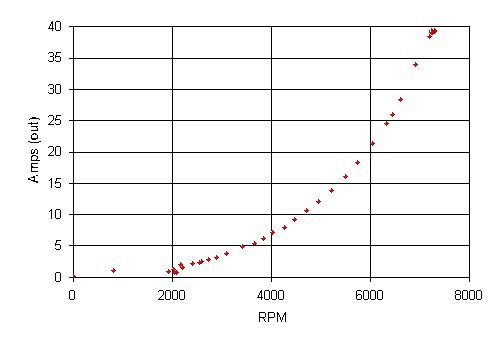

APC Thin Electric 13x6.5 *2 10.58
 39.09
 7320
 413.57
 73km/h
 2035.5
 315
 76.2
10.38 38.44
 7200
 399.01
 71km/h
 1965.1
 298
 74.7
APC Thin Electric 12x6
 10.5
 25.9
 7525
 271.0
 69km/h
 1552.3
 224
 82.4
APC Thin Electric 12x6
 13.0
 37.9
 8928
 493.2
 82km/h
 2234.8
 400
 81.2
APC Thin Electric 10x5 10.5
 14.8
 8163
 155
 62km/h
 936.3
 124
 79.8
APC Thin Electric 10x5
 14.0
 24.5
 10807
 344
 82km/h 1678.6 306 89.2
*1 Predicted value.
*2 Measurement data.

Hacker A40-L


 Return to Top
Motor Shaft  D2 x L2
 5mm x 21.3mm
Motor Size    D1 x L1
 41.7mm  x 64.1mm
Kv
 500(10T) 410(12T) 355(14T)
Continuous Current
 45A
Max Power
 1100W(15S)
Max. Current
 55A (15S)
Weight
 350g
LiPo cells
 3-6(10T) 4-6(12T) 4-7(14T)
Application
 13x6.5..16x10 15x8..17x11 15x8..18x11
Web Site URL
 http://www.hacker-motor.com/deutsch/motor-a40.html

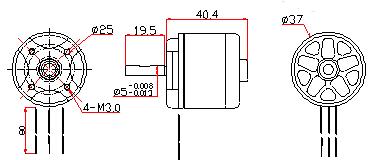

TURNIGY D3639-1100*

Size
Click to enlarge
 Return to Top

Motor Shaft
 5mm
Motor Size
 37mm dia. x 40mm (L)
Kv
 1100 rpm/V
Kv (measered)
  rpm/V (rpm / v)
Poles
 14
Max. Efficiency Current 35A - 45A
Max. Power
 900W
Max Current 45A 20S
Weight including connector 135g exclude connector
LiPo cells
 3-5
Web Site URL
 http://www.turnigy.com/

TURNIGY 3639-1100
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 11x5.5 13.5
 35
 10260
 472.50
 86km/h 2106
 397
 84
APC Thin Electric 12x6 13.5
 45
 9420
 607.50
 86km/h
 2505.5
 479
 78.8
APC Thin Electric 12x6 10.3
 31
 8000
 319.30
 73km/h
 1768.6
 276
 86.4
APC Thin Electric 13x4 11.2
 30.7
 8180
 343.84
 75km/h
 1925
 290
 84
JXF Wood 11x6



km/h


*1 Measurement data by Tahmazo Thrust meter.
*2 Over load

TURNIGY D3648-850*

Comparing E-Max  BL2826-06,
This motor is much more better performance, much more powerful and much cool.
I checked only small power. D3648-850 can be used 6cell LiPo 50A(approx 1.1KW).
Click to enlarge
 Return to Top

Motor Shaft
 5mm
Motor Size
 37mm dia. x 48.9mm (L)
Kv
 850 rpm/V
Kv (measered)
 905 rpm/V (13066rpm / 14.43v)
Poles
 14
Max. Efficiency Current 45A - 50A
Max Current 55A 20S
Weight including connector 185g exclude connector
LiPo cells
 3-6
Web Site URL
 http://www.turnigy.com/

TURNIGY 3648-850 Measurement by Eagle Tree Data Logger & Tahmazo thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.

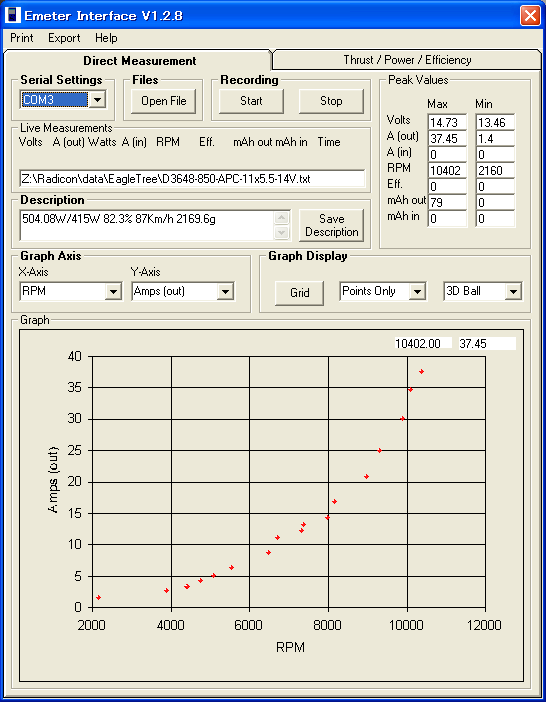

APC Thin Electric 11x5.5 13.46
 37.45
 10402
 504.08
 87km/h 2169.6
 415
 82.3
APC Thin Electric 11x7 13.06
 32.36
 9003
 422.62
 96km/h
 1819.7
 340
 80.5

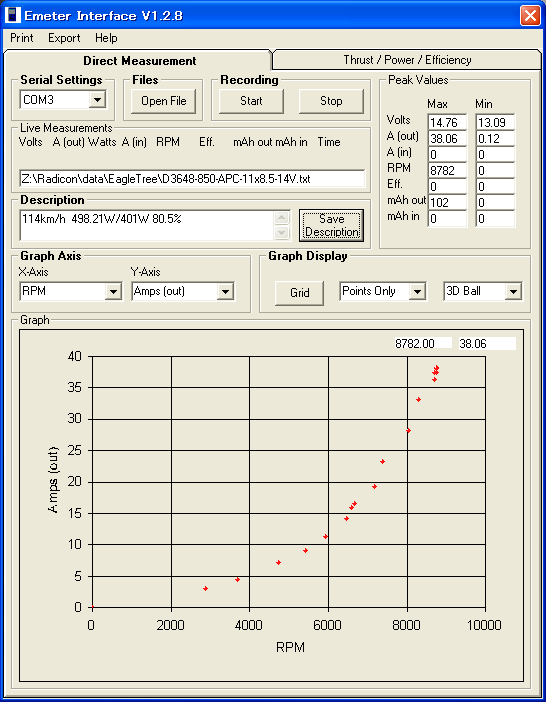

APC Thin Electric 11x8.5 13.09
 38.06 8782 498.21
 114km/h
 *1 2010 401
 80.5
APC Thin Electric 12x6 13.13
 41.31 9079
 542.40
 83km/h
 2316.1
 		423
 78.0
APC Thin Electric 13x6.5 13.30


km/h


APC S 10x7 16.49 56.33
 11903
 *2 922.88
 127km/h
 2698
 N/A
 N/A
*1 Measurement data by Tahmazo Thrust meter.
*2 Over load
