     Hacker A10-15S  Feigao 1230-5300

Hacker A10

Return to Top

Motor Shaft
 2mm
Motor Size
 21mm dia. x 21mm (L)
Continuous Current
 6A
Power range
 55W (15sec)
Weight
 15g
LiPo cells
 2
Kv
 2320
Web Site URL Hacker motor shop-A10-15S
Application
Lipo 2S only
Propeller
Volts Amps RPM Epower Speed Thrust Ppower Eff.
GWS Hyper Drive 6x3 7.0
 4.6
 11270
 32.2
 52
 198.4
 22
 68.3
GWS Hyper Drive 7x3.5
 7.0
 6.0
 9880
 42.0
 52
 216.6
 22
 52.4
APC SF 7x4
 7.0
 7.0
 8010
 49.0
 49
 235.3
 27
 55.1

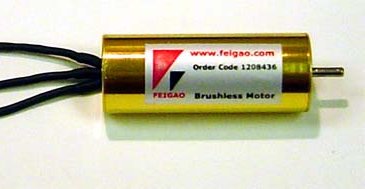

Feigao FG1230

      Return to Top
Motor Shaft
 1.5mm
Motor Size
 12mm dia. x 30mm (L)
Kv
 5300 rpm/V
Max. Current
 5A
Weight
 17g
LiPo cells
 2-3

Propeller Data LVX 3S 1500
Feigao 1208428 - 5300Kv 5.0A-45W20℃

Volt Amps rpm Epower Speed Thrust Ppower
GWS 3x2
 7.20V
 5.20A
 24575
 37.44 75km/h
 128.6g
22.2W
Gear Box 3.5:1
GWS Hyper Drive 6x3
 7.51V
 2.59A
 9840
 19.45W 45Km/h
 149.0g
 14.0W
GWS Slow Fly 6x5
 7.4V
 4.32A
 8280
 31.37W 63Km/h
 179.5g
 22.1W
GWS Slow Fly 7x6
 7.35V
 *1 6.26A
 6645
64.01W 61Km/h
 238.3g
31.9W
*1  Over load
