Middle Size Motor 2

TinySize  SmallSize  Mid.SmallSize MiddleSize1 LargeSize1 LargeSize2

All data is actual measurement. However please have to understand these are one of sample.

  enPower3214-1200   Hyperion Z3007   Turnigy C3530   Turnigy D3632   Turnigy SK3530   HXT 2845   RCer Warp4   HET Typhoon 2W

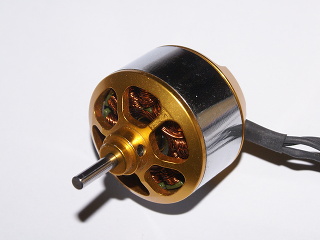

enRoute enPower 3214-1200

Click to enlarge
enPower 3214-1200 Return to Top

Motor Shaft
 3.17mm
Motor Size
 32.5mm dia. x 26.5mm (L)
Kv
 1200 rpm/V
Continuous Current
 13A-18A
Max. Current
 23A 30sec
Weight
 65g
LiPo cells
 2-4
Web Site URL http://www.enroute.co.jp

Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC 7X5E 10.10 14.30 11130 144.4
 85km/h
 544.0
 90
 62.3
APC 8X6E 11.21
 21.06
 10470
 236.1
 96km/h
 933.3
 190
 80.5
APC 9X4.5E 10.10
 20.00
 10120
 202.0
 69km/h
 1007.2
 147
 72.8
APC 10X5E 10.10 23.00 9420 232.2 72km/h 1261.4 196 84.4
Show Laser 20 Power unit report.

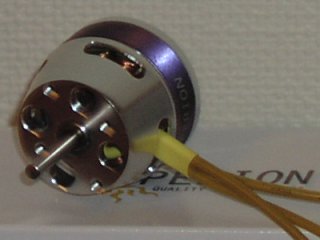

Hyperion Z3007

Hyperion Z3007   Return to Top
Motor Shaft
 4mm
Motor Size
 37mm dia. x 31.8mm (L)
Kv
 1050 rpm/V
Continuous Current
 13A-18A
Max. Current
 25A 30sec
Weight
 75g
LiPo cells
 2-3
Web Site URL
 http://www.aircraft-world.com/prod_datasheets/hp/z30/z3007spec.htm
http://www.aircraft-japan.com/prod_datasheets/hp/z30/z3007spec.htm
Setup
 HP Yak55-SP

Hyperion Z3007-30 Measurement data by Hyperion Emeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 11x5.5 10.84
 23.70
 8160
 256.9
 68
 1284.4
 188
 73.2
APC Thin Electric 10x7 10.87
 23.97
 8280
 260.6
 88
 1075.6
 190
 72.9
APC Thin Electric 10x5 10.96
 19.33
 8970
 213.1
 68
 1139.1
 168
 78.9
APC Thin Electric 9x9
 10.27 26.29 7575 270.0 104 *1 853.0 158 58.5
APC Thin Electric 9x6 10.66 19.00 9120 202.5 83 955.3 150 74.1
APC Thin Electric 9x4.5 10.61
   15.55 9630
 165.0
 66
 906.4
*2 980		 126
 76.4
APC Thin Electric 8x6
 14.82
 26.08
 11920
 386.5
 109
 1231.0
 305
 78.9
APC Thin Electric 8x6 10.91
 15.90
 9150
 162.6
 84
 698.6 116
 71.4
APC Thin Electric 8x4 14.31
 16.57
 12750
 237.1
 78
 1097.5
 203
 85.6
Aeronaut 8.5x6 Glass 13.88
 19.44 11970
 269.8 109
 *1 1201.9
 209
 77.5
Aeronaut 8.5x5 Glass 13.94
 16.41
 12420
 228.8
 95
 1078.3
 166
 72.6
*1 Predicted value.  3cell best choice.  4cell best choice.    Aeronaut k=22.765
*2 Measurement data by Tahmazo Thrustmeter.

Turnigy Aerodrive Series TR35-30*

Click to enlarge
Aerodrive Series 35-30 Return to Top

Kv
 1100
Poles
 14
Max. Power
 350W  60sec
LiPo cells 3-4
Shaft Diameter
 4mm
Stator Size
 35mm x 30mm
Weight
 77g
Product URL
 http://www.turnigy.com/motor_aerodrive03.html
*1 Measurement data
Turnigy Aerodrive Series TR35-30 Measurement data by Eagletree eLogger V3
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 9x4.5 10.98
 15.50 9652
 170.19
 66km/h
 910.8
 127
 74.6
APC Thin Electric 9x6 10.86
 18.87 8928
 204.93
 82km/h
 914.6 164
 67.2
APC Thin Electric 10x5 10.86
 19.18 8928
 208.29
 68km/h
 1128.2
 165
 79.2
APC Thin Electric 11x5.5 10.70
 23.61 8116
 252.63
 68km/h
 1269.4
 185
 73.2
APC Slow Flight 11x4.7 10.56
 27.48 7190
 289.91
 51km/h
 1469.8 191
 65.9
*1 Measurement data by Tahmazo Thrustmeter.

TURNIGY D3632-1200*

Comparing Hyperion ZS3009,
This motor is much more powerfull.
D3632-1200 can be used 4cell LiPo 40A(approx 600W).
High efficiency cool motor.
Click to enlarge
 Return to Top

Motor Shaft
 4mm dia. x 19.5mm(L)
Motor Size
 37mm dia. x 33.9mm (L)
Kv
 1200 rpm/V
Kv (measered)
 1173 rpm/V (13392rpm / 11.42v)
Poles
 14
Max. Efficiency Current 30A - 35A
Max Current 40A 20S
Weight including connector 97.2g exclude connector
LiPo cells
 3-4
Web Site URL
 http://www.turnigy.com/

TURNIGY 3632-1200 Measurement by Eagle Tree Data Logger & Tahmazo thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 10x5 10.60
 24.15
 9920
 255.99
 76km/h 1404.7
 232
 90.6
APC Thin Electric 10x7 10.60
 30.27
 9003
 317.33
 96km/h
 1291.4
 247
 77.8
APC Thin Electric 11x5.5 10.81
 32.61 9236
 352.51
 77km/h
 1678.3 282
 80.0
APC Thin Electric 12x6 10.45
 40.70 8178
 424.50
 75km/h
 1853.6 297
 70.0
APC Slow Flight 10x4.7 10.57
 32.11 9398
 354.17
 67km/h
 1714.8 296
 83.6
JXF Wood 11x6 10.83 34.57
 8928
 374.39
 64km/h
 N/A
 N/A
 N/A
*1 Measurement data by Tahmazo Thrust meter.
*2 Over load

Turnigy AerodriveXp SK Series 35-30

Click to enlarge
AerodriveXp SK Series 35-30 Return to Top

Stator Size 35mm x 30mm
Shaft Diameter 4mm
Kv
 1100 rpm/V
Kv (measered) 957 rpm/V (11045rpm / 11.42v 1.47A)
Poles
 14
Max. Power
 345W  60sec
LiPo cells 3-4
Weight
 90g
Product URL
 http://www.turnigy.com/motor_sk_aerodrive02.html
*1 Measurement data
Turnigy AerodriveXp SK Series 35-30 Measurement data by Eagletree eLogger V3
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 11x5.5 10.83
 18.45 7763
 199.81
 65km/h
 1153.2
 160
 79.7
APC Thin Electric 12x6 10.65
 22.92 6868
 244.10
 63km/h
 1277.6 164
 67.2
APC Thin Electric 13x6.5 10.45
 26.01 6025
 271.80
 60km/h
 1320.6
 164
 60.3
APC Slow Flight 10x4.7 10.83
 18.51 7820
 200.46
 56km/h
 1148.7
 164
 81.8
APC Slow Flight 11x4.7 10.50
 21.82 6957
 229.11
 50km/h
 1358.5 172
 75.1
Master Airscrew Wood 12x6 10.53
 25.92 6339
 272.94
 57km/h
 *11280.0 N/A N/A
JXF Wood SF 12x6
 10.62
 24.45 6781
 259.66
 62km/h
 *11250.0
 N/A N/A
JXF Wood SF 13x4 10.60
 24.27 6781
 257.26
 41km/h
 *11260.0
 N/A
 N/A
APC Thin Electric 11x5.5 13.31
 24.21 8782
 322.24
 73km/h
 1505.2 233
 72.3
*1 Measurement data by Tahmazo Thrustmeter.

HXT 2845

Click to enlarge
  Return to Top
HXT 2845-2100 (380L)
Motor Shaft
 3.175mm
Motor Size
 28.0mm dia. x 47mm (L)
Weight
 123g
Poles
 2
Kv
 2100 / *1 2300
Max. Current Continuous
 40A
Voltage range
 6-16V
*1 Measurement data
HXT 2845 (380L) Measurement data by Eagletree eLogger V3 & Hyperion Emeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Sport 7x5 10.43
 34.68
 16741
 351.28
 128km/h
 *1 1260.0
 202
 64.6
APC E 7x5 10.39
 39.72 15592
 399.08
 119km/h
 1128.7
 281
 70.4
APC E 6x5.5 10.65
 31.38
 18427
 334.20
 154km/h
 754.8
 228
 68.2
JXF 7x6
 9.99
 37.63
 15400
 375.92
 117km/h
 *1 996.0
 N/A
 N/A
*1 Measurement data by Tahmazo Thrustmeter.

RCer Warp4

Click to enlarge
  Return to Top
See also EDF Motor 2
RCer BL4-15 Warp4
Motor Shaft
 3.00mm
Motor Size
 28.0mm dia. x 34.5mm (L)
Weight
 74.5g
Poles
 6
Turns
 2T
 3T
 4T
 5T
 6T
Kv
 3880
 2580
 1810
 1430
 1190
Max. Current Continuous
 32A
 26A
 22A
 18A
 14A
Max. Current 20sec
 60A
 40A
 30A
 24A
 18A
Application examples Aircraft EDF-68  APC S400 4.1x4.1 3cell LiPo up to 43A
Web Site URL
 http://www.aircraft-world.com/prod_datasheets/rcer/bl4-15.htm
http://www.aircraft-japan.com/prod_datasheets/rcer/bl4-15.htm


RCer Warp4  3T Measurement data by Hyperion Emeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC S400 4.75x4.75 3T 10.46
 26.70
 23310
 279.3
 169km/h
 511.1
 202
 72.3
APC S400 5x5 10.20
 26.56 22140
 270.91
 169km/h
 537.0
 188
 69.4
Graupner Speed 5.5x4.3 10.59
 29.26
 19170
 309.86
 126km/h
 598.0
 N/A
 N/A
APC S400 4.1x4.1
 2T
 10.06
 42.90
 33280
 431.57
 208km/h
 571.6
 313
 72.5
*1 Measurement data by Tahmazo Thrustmeter.

HET Typhoon 2W


    Return to Top

HET Typhoon EDF 2W
Motor Shaft 3.17mm
Motor Size
 28mm dia. x 38mm (L)
Kv
 4750rpm/V
Max. Current 40A
Max input power
 450W
Weight
 78g
Poles
 6
LiPo cells 3
Application examples
 APC S 4.1x4.1 HET EDF unit 6904 or WeMoTec 480 mini fan
