Middle Size Motor 1

TinySize  SmallSize Mid.SmallSize MiddSize2 LargeSize1 LargeSize2

All data is actual measurement. However please have to understand these are one of sample.

      EMAX2215/20   Hyperion Z2213   KEDA Model KA20-20L   Pulso X2212   Pulso X2217   Turnigy 2836   Waypoint W-E2215

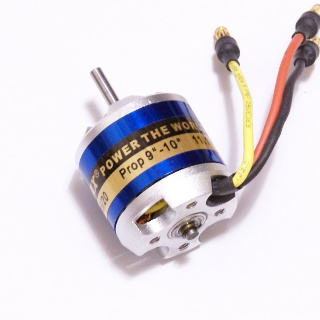

EMAX BL2215-20

Click to enlarge
Click to enlarge I can not beleave in Emax site data. Because APC SF 10x4.7 current is smaller than APC E 10x5's one. This motor can't drive APC SF 10x4.7. It is over load, The current is over 25A.

A
 B
 C
 D
 E
 F
32mm
 19 /16mm
 47mm
 28.4mm
 3mm
 12mm

Return to Top

Kv
 1200rpm/V
Max Efficiency Current
 14 - 24.5A ( > 75%)
Max Efficiency 82%
Max. Current
 24.5A  60sec
LiPo cells 2 - 3
Shaft Diameter
 3mm
Stator Size
 22mm x 15mm
Weight
 59g
Puroduct URL
 http://www.emaxmodel.com/brushless-motor.html?cat=41

Emax BL2215-20 Measurement data by Hyperion Emeter & Tamazo Thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust Thrust *2 Ppwr Eff.
APC Thin Electric 10x7 10.57
 *3  25.00 7875
 264.25
 84km/h
 968.3
162
 61.3
KK Hobby 10x6
 11.10
 *3  26.19
 9060
 290.71
 83km/h
 N/A
 1020 N/A
 N/A
APC Thin Electric 10x5 10.68
 22.03 8850
 235.28
 67km/h
 1107.8
 1050
 161
 68.4
APC Slowfly 9x4.7
 10.72
 18.84
 *4 9690
 201.96
 69km/h
 1010.9
 1010
 131
 64.9
APC Thin Electric 9x9
 10.50 *3  27.16 7575
 285.18
 104km/h
 N/A  853 158
 55.4
APC Thin Electric 9x6 10.71 20.95 9300
 224.91
 85km/h
 994.2 1020 159
 70.7
APC Thin Electric 9x4.5 10.71
   18.14 9840
 195.91
 67km/h
 948.9
 950 135
 68.9
KK Hobby 9x4 10.49
 15.81
 9810
 165.85
 60km/h
 N/A
 800
 N/A
 N/A
KK Hobby 8x8 10.91 17.11 10230
 186.67
 125km/h
 N/A 770 N/A N/A
APC Thin Electric 8x6 10.82
 18.41 9870
 199.20
 90km/h
 822.1
 880
 153
 76.8
APC Thin Electric 7x5 11.03
 11.50 11640
 126.95
 89km/h
 599.4
 620
 104
 82.0
*1 Aeronaut E 8.5x6
 10.04
 15.71
 9810
 157.73
 56km/h
 N/A
115
 72.4
*1 Aeronaut E 8.5x5 10.34
 14.36
 10770
 148.48
 56km/h
 791.4
108
 72.7
*1 APC Thin Electric 8x4 10.16
 13.50
 10950
 137.16
 41km/h
 798.6
119
 86.8
*1 Hyperion LVX-1500-3S data   Aeronaut k=22.765
*2 Measurement data by Tahmazo Thrustmeter. *3 Over load  *4 Over Maximum rpm

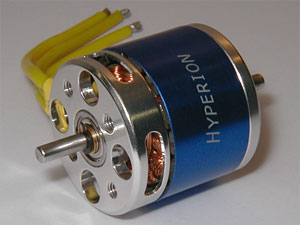

Hyperion Z2213 20Turn

Hyperion Z3007   Return to Top
Motor Shaft
 3mm
Motor Size
 28mm dia. x 42mm (L)
Kv
 1025 rpm/V
Continuous Current
 8A-14A
Max. Current
 18A
Weight
 53g
LiPo cells
 2-3
Web Site URL
 http://www.aircraft-japan.com/prod_datasheets/hp/z22/z22all.htm

HP2213-20 Measurement data by Hyperion Emeter & Tamazo Thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust *1 Thrust
 Ppwr Eff.
APC Slowfly 10x4.7
 10.04
 *2 19.58
 *3 7215
 203.63
 52km/h
 931.2
 980
 126
 61.9
APC Slowfly 9x4.7 10.83
 14.16
 *3 9060
 153.35
 65km/h
 877.2
 805
 108
 70.4
Aeronaut 8.5x6 Glass 10.82 12.79 9690 138.39 89km/h N/A 780 111
 80.2
APC Thin Electric 9x6 10.1
 16.1
 8310
 162.61
 76km/h
 789.8
 N/A
 112
 68.9
APC Thin Electric 8x6 10.1
 14.8
 8700
 149.48
 80km/h
 626.9
 N/A
 96
 64.2
*1 Measurement data by Tahmazo Thrustmeter.
*2 Over load  *3 Over maxmum rpm

Keda Model A20-20L

Max Q A20-20L

Return to Top

Motor Shaft    D2 x L2 3.17mm x 12mm
Motor Size     D1 x L1 28mm dia. x 32mm (L)
Kv
 1050 rpm/V
Continuous Current
 15A
Max. Current
 19A 15sec
Weight
 57g
LiPo cells
 3
Product URL
 http://www.kdmodel.com/a20_en.htm

KA20-20L Measurement data by Hyperion Emeter & Tamazo Thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust *1 Thrust
 Ppwr Eff.
APC Slowfly 10x4.7
 10.45
 15.33
 6825
 160.20
 49km/h
 853.8
 850
 106
 66.2
APC Thin Electric 11x5.5 10.78
 15.33
 6765
 165.26
 57km/h
 856.7
 905
 102
 61.7
APC Thin Electric 10x5 10.68
 11.93 7560
 127.41
 58km/h
 791.6 785
 97
 68.4
Aeronaut 9.5x7 Glass 10.96
 12.74 7470
 139.63
 80km/h
 N/A
 750
 75.2
 75.0
APC Thin Electric 9x6 10.93 11.17 8115
 122.65
 74km/h
 752.3
 685
 104
 84.8
APC Thin Electric 9x4.5 10.98
   9.28 8205
 101.89
 55km/h
 644.9 640
 77
 75.6
*1 Measurement data by Tahmazo Thrustmeter.

Pulso X-2212-20

      Return to Top
Motor Shaft
 3mm
Motor Size
 27.6mm dia. x 30mm (L)
Kv
 1280 rpm/V
Continuous Current
 8A-16A
Max. Current (60S)
 16A
Weight including connector 58g
LiPo cells
 2-3
Web Site URL
 http://www.danlions.com/motor/2212.html

Pulso X-2212 Measurement data by Hyperion Emeter & Tahmazo thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
Aeronut E 8.5x5
 10.63
 12.85
 10290
 136.60
 78km/h
 716.9
 94
 69.09
APC Thin Electric 7x5 10.72
 10.04
 10980
 107.63
 84km/h
 528.3
 86
 79.64
APC Thin Electric 9x4.5 10.77
 17.06
 9540
 183.74 65km/h
 888.5
 123
 66.72
APC Thin Electric 9x6 10.70
 19.22
 8820
 205.65
 81km/h
 892.1
 135
 65.63
APC Thin Electric 10x5 10.65
 *2 20.35 8640
 216.73
 66km/h
 1053.8
 149
 58.42
Glass 8x8
 10.67
 11.96
 8790
 127.61
 107km/h
 *1 560
 N/A
 N/A
*1 Measurement data by Tahmazo Thrust meter.
*2 Over load

Pulso X-2217-16

      Return to Top
Motor Shaft
 3.17mm
Motor Size
 27.6mm dia. x 35mm (L)
Kv
 1050 rpm/V
Continuous Current
 8A-18A
Max. Current (60S)
 22A
Weight including connector 72g
LiPo cells
 2-3
Web Site URL
 http://www.danlions.com/motor/2217.html

Pulso X-2217 Measurement data by Hyperion Emeter & Tahmazo thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 8x6 10.79
 16.71
 9540
 177.06
 87km/h
 764.2
 135
 76.6
APC Thin Electric 9x4.5 10.81
 15.93
 9540
 172.20
 65km/h
 888.5
 123
 71.2
APC Thin Electric 9x6 10.68
 19.65
 8820
 209.86
 81km/h
 892.1
 135
 64.3
APC Thin Electric 9x9 10.50
 *2 25.27
 7530
 265.34
 103km/h
 *1 715
 156
 58.8
APC Thin Electric 10x5 10.68
 19.81
 8730
 211.57
 67km/h
 1076.7
 154
 72.8
APC Thin Electric 10x7 10.56
 23.32
 7890
 246.26
 84km/h
 972.4
 163 66.2
APC Thin Electric 11x5.5 10.56
 23.81
 7950
 251.43
 67km/h
 1214.0
 173
 68.8
*1 Measurement data by Tahmazo Thrust meter.
*2 Over load

TURNIGY 2836

Very Powerfull for EDF and Speed prop.

Click to enlarge
 Return to Top


Motor Size 28mm dia. x 38mm (L)
Kv
 3200 rpm/V
 2350 rpm/V(2550 measured.)
Motor Shaft 3.17mm 4mm
Max efficiency current
 35-45A
 30-40A
Current capacity
 55A 20S
 45A 20S
Max. Power
 650W
 480W
Weight
 71.8g exclude connector
 81.5g exclude connector
LiPo cells
 3-4
Web Site URL
 http://www.turnigy.com/

TURNIGY 2836-3200 Measurement by Hyperion Emeter & Tahmazo thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC S400 4.1x4.1 10.13
 22.51
 28350
 228.03
 177km/h 414.2
 183
 80.4
APC S400 4.75x4.75 10.07
 27.43
 23940
 276.22
 173km/h
 542.2
 220
 79.8
APC S400 5x5 10.50
 34.61
 24570
 352.33
 187km/h
 681.7
 256
 72.6
APC S400 4.75x5.5 10.15
 40.77
 25020
 413.82
 210km/h
 *1 620
 319
 76.8
APC E 6x5.5 10.68
 *2 66.47
 21900
 729.18
 184km/h
 1093.4
 381
 52.3

TURNIGY 2836-2350 Measurement by Hyperion Emeter & Tahmazo thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC S400 5.5x4.5 10.68
 31.81
 22321
 339.73
 153km/h
 816.0
 263
 77.4
APC S400 6x4 10.65
 32.36
 21929
 344.63
 134km/h
 1064.8
 285
 82.7
APC E 6x5.5 10.24
 39.10
 19685
 400.38
 165km/h
 869.7
 278
 69.4
APC Sport 7x5 9.87
 42.11
 17605
 415.63
 134km/h
 *1 1180 264
 63.5
*1 Measurement data by Tahmazo Thrust meter.
*2 Over load

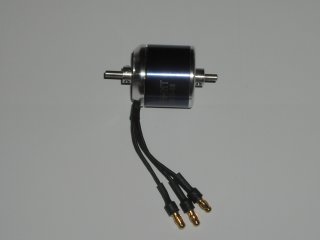

Waypoint W-E2215

      Return to Top
Motor Shaft
 3mm
Motor Size
 27.8mm dia. x 32mm (L)
Kv
 1039 rpm/V
Continuous Current
 8A-16A
Max. Current
 18A
Weight including connector 59g
LiPo cells
 2-3
Web Site URL
 http://www.aircraft-japan.com/prod_datasheets/wpoint/eblesc/w-manual.htm

Waypoint W-2215-18 Measurement data by Hyperion Emeter & Tahmazo thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC E 8x6 10.86
 16.20
 9420
 175.9
 86km/h 680g 129
 73.3
APC E 9x4.5 10.89
 15.66
 9360
 170.5
 64km/h 853g 116
 68.0
APC E 9x6 10.82
 18.41
 8730
 199.2
 80km/h 874g 131
 65.8
APC SF 10x4.7
 10.04
 *2 21.06
 7215
 211.4
 52km/h
 964g
 126
 59.6
GWS 9x5 HD 10.91
 15.82
 9570
 172.6
 73km/h 890g 119
 68.9
GWS 10x6HD 10.77 19.60
 8370
 211.1
 77km/h 960g n/a n/a
JXF 8x8 10.91 15.44
 9750
 168.5
 119km/h *1 720g n/a n/a
*1 Measurement data by Tahmazo Thrust meter.
*2 Over load
