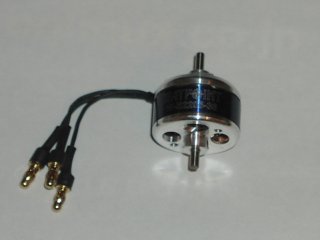

Waypoint W-E2205

Click to enlarge
Return to Top

Spec.
Motor Shaft
 3mm
Motor Size
 28mm dia. x 22.4mm (L)
Continuous Current
 No Data
Max. Current
 No Data
Weight
 31g including wire & 3.5mm connectors
LiPo cells
 2-3
Web Site URL http://www.aircraft-japan.com/prod_datasheets/wpoint/eblesc/w-manual.htm
W-E2205-32
Kv 1970 rpm/V
Application 32T
Lipo 2S only
Prop. Volt
 Amps Epwr
 rpm Speed thrust
APC S400 5.25x4.75  7.28V
 6.85A
 49.87
 12420
 89.9km/h
 196.13g
GWS HD 6x3 7.40V
 5.61A 41.51
 12720
 58.2km/h
 256.11g
APC E Thisn 6x4 7.35V
 7.77A 57.11
 11550
 70.4km/h
 250.71g
GWS EP 6x5 7.28V
 9.45A 68.80
 10530
 80.2km/h
 298.75g
APC E Thisn 6x5.5 7.61V
 10.36A 78.84
 10860
 91.0km/h
 242.65g
GWS HD 7x3.5
 7.24V
 6.91A
 50.03
 11310
 60.3km/h
 295.60g
APC Slow fly 7x4
 7.15V
 10.31A
 73.71
 9410
 57.4km/h
 334.46g
W-E2205-36
Kv 1770 rpm/V
Application 36T
Lipo 3S
Prop. Volt
 Amps
 Epwr
 rpm  Speed  thrust
APC S400 5.25x4.75 11.23V
  9.34A
 104.89
 17580 127.3km/h 402.6g
APC E Thisn 6x4
 11.09V
 9.61A 106.57
 15420
 94.0km/h
 481.1g
GWS HD 6x3 11.16V
 7.50A
 83.70
 15990 73.1km/h
 415.0g

enRoute enPower 300XT

Click to enlarge
Return to Top

Motor Shaft
 3mm
Motor Size
 25.7mm dia. x 17.5mm (L)
Kv
 1300 rpm/V
Continuous Current
 5A
Weight
 29g
LiPo cells
 2-3
Application
Prop.
 Volt
 Amps
 Epwr
 rpm
 speed
 Thrust
GWS HD 7x3.5 10.74V 3.5A 38.23
 10380 55km/h
 243
GWS SF 7x6 7.0V
 4.2A
 29.40
 5790
 53km/h
 181
GWS SF 8x4.3
 7.0V
 4.1A
 28.70
 6000
 39km/h
 240
Product URL
 N/A

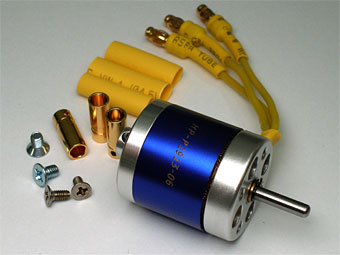

Hyperion P1913-06

      Return to Top

 HP-P1913-06 HP-P1913-08 HP-P1913-10 HP-P1913-06M HP-P1913-08M
Products URL
 http://www.aircraft-japan.com/prod_datasheets/hp/p19/p19all.htm
Stator Dia 19mm
Weight
 47.5g
 44.5g
Outside Dia 23.65mm
Length
 26.8mm
Motor Shaft 3.0mm
 2mm / 2.3mm
Max eff. Current 10-14A 8-11A
 6-9A
 10-14A 8-11A
Max Continuous Current 20A
 16A
 13A
 20A 16A
Winding
 6T
 8T
 10T
 6T
 8T
Max rpm
 40,000 rpm
Kv 2080
 1630
 1220
 3700
 2880

Propeller Data LVX 3S 1500
HP-P1913-06

Volt
 Amps
 rpm
 Speed
 Thrust 20℃
APC S4 4.75x4.75
 10.50V
 13.3A
 19470
 141Km/h
 342.8g
APC S4 5.0x5.0
 10.50V
 14.4A
 19050
 145Km/h
 380.6g
APC S4 5.25x6.25
 10.50V
 20.7A
 17400
 166Km/h
 398.2g
APC S4 5.25x4.75 10.50V
 16.6A
 18420
 133Km/h
 443.5g
APC S4 5.5x4.5 10.50V
 18.5A
 17970
 123Km/h
 497.3g
Graupner 5.5x4.3 10.60V
 21.7A
 17760
 116Km/h
 509.2g
APC 6.0x4.0E
 10.41V
 19.06A
 17940
 109Km/h
 677.0g
11.70V
 21.11A
 18720
 114Km/h
 745.2g
P1913-06  Tucano
P1913-08
P1913-10
