All data is actual measurement. However please have to understand these are one of sample.

    enPower 28E-1534   enPower 2815-1300   GWS BLM003   HyperionG2213   SPIN Max 2212-6

enRoute enPower28E-1534

Click to enlarge

Return to Top This motor is OEM by EMax. CF-2822 is same one. Efficiency data is no good, the worst case APC E 8x4 under 60%. However price is very cheap.

Motor Shaft
 3mm
Motor Size
 28.5mm dia. x 31mm (L)
Kv
 1534 rpm/V
Continuous Current
 20A
Weight
 40g
LiPo cells
 2-3
Application
Prop.
 Volt
 Amps
 Epwr
 rpm
 speed
 *1 Thrust
APC E 7x5 11.15 15.61 168.25
 11940 91km/h
 645.0
APC SF 7x4 11.15
 15.09
 168.25
 12120
 74km/h
 588.5
APC E 8x4 11.06
 17.81
 196.98
 10830
 66km/h
 794.7
Product URL
 http://www.emaxmodel.com/brushless-motor/cf2822.html
*1 Measurement 15°C

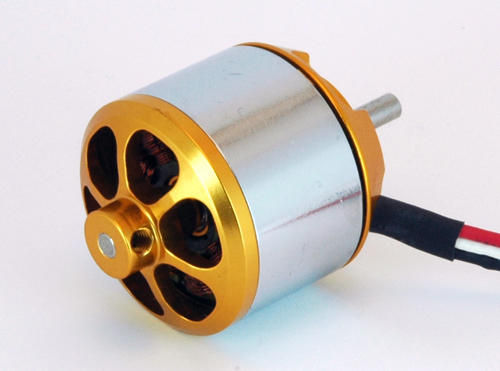

enRoute enPower 2815-1300

     Return to Top
Motor Shaft
 3.17mm
Motor Size
 28mm dia. x 27.5mm (L)
Kv
 1300 rpm/V
Continuous Current
 14A
Max. Current
 18A
Weight
 51g
LiPo cells
 2-3
Application
 APC 7X5E 10.6V 12.1A 11288rpm
APC 8X4E 10.5V 12.3A 10350rpm
APC 8X6E 10.5V 17A 9420rpm (over load)
Product URL
 http://www.enroute.co.jp/store/index.php?main_page=product_info&cPath=188_8_21&products_id=149

GWS BLM-003

      Return to Top


Motor Shaft
 3mm
Motor Size
 28mm dia. x 24.5mm (L)
Kv
 1030 rpm/V
Continuous Current
 12A
Weight
 49g
LiPo cells
 2-4
Application
Prop.
 Volt
 Amps
 Epwr
 rpm
 speed
 Thrust
GWS HD 9x5 10.50 8.80 94.51
 7815
 60km/h
 570.8
GWS SF 8x6 1072
 9.19
 98.52
 7715
 71km/h
 482.6
GWS SF 9x4.7
 10.67
 10.30
 109.90
 7605
 54km/h
 628.1
Product URL
 http://www.gwsus.com/english/product/motor/gwblm003.htm

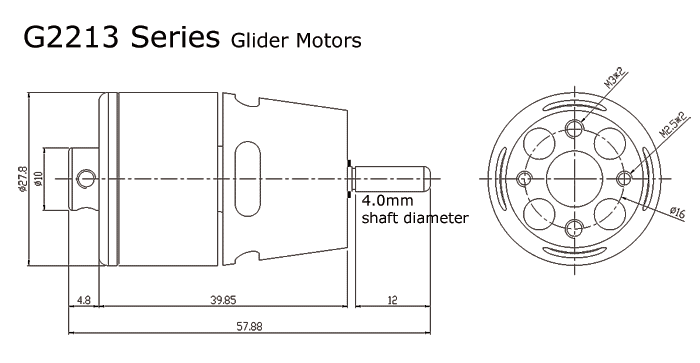

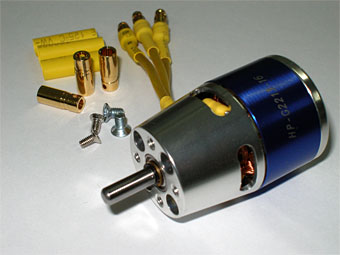

Hyperion G2213

     Return to Top


 HP-G2213-16 HP-G2213-20
Weight 65.5g
Size
 27.8mm dia x 39.85mm length
Motor Shaft 4mm
Max eff. Current
15-20A
 12-16A
Max. Current 32A 30sec
 23A 30sec
Turn 16T
 20T
Kv 1470
 1030
Application APC 9x6E 10.46V 24.1A 9690rpm
Aeronaut CAM  10.0x6.0  10.39V 24.2A 9700rpm
Aeronaut CAM  11.0x6.0  10.35V 31.7A 8145rpm
 APC 9x6E 10.48V 14.4A 8460rpm
Aeronaut CAM  9.0x6.0  10.48V 14.4A 8460rpm
Aeronaut CAM  10.0x6.0  10.48V 14.5A 8400rpm
Product URL http://www.aircraft-world.com/prod_datasheets/hp/g22/g22all.htm
http://www.aircraft-japan.com/prod_datasheets/hp/g22/g22all.htm
G2213
G2220

Spin Max 2212-6

  BMA2212   Return to Top
Motor Shaft
 3.17mm
Motor Size
 27.5mm dia. x 30mm (L)
Winding 12T
Kv
 2200 rpm/V
Max efficiency Current
 14 - 22A (>75%)
Max. Power
 342W
Weight
 50g
LiPo cells
 2-3
Application
Propeller Volt Amps rpm
 Epwr Ppwr Speed Thrust Eff.
APC S400 5x5 10.99
 18.19
 20760
 199.91
 156
 158km/h
 463.4
 78.1
APC S400 5.25x4.75 10.88
 21.22
 19650
 230.87
 160
 142km/h
 507.0
 72.7
APC S400 5.25x6.25 10.20
 24.03
 18750
 245.11
 214
 179km/h
 464.5
 87.3
APC E 6.0x4.0 10.81
 22.95
 19230
 248.55
 189
 117km/h
 791.6
 76.0
APC E 6.0x5.5 10.31
 26.73 17490
 275.59
 196
 147km/h
 674.8 71.0
