Large Size Motors 2

TinySize  SmallSize  Mid.SmallSize  MiddleSize1  MiddleSize2  LargeSize1

      Hyperion Z3013   Hyperion Z3019   EMAX BL2826-06   Hyperion Z3025   Hyperion Z4020   Waypoint W-E3020   Modelmotor AXI4120/14

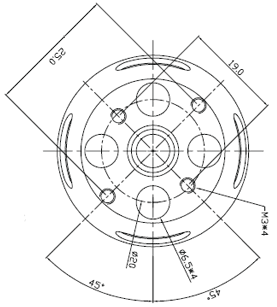

Hyperion Z3013

Hyperion Z3019   Return to Top
Motor Shaft 5mm
Motor Size 37mm dia. x 37.8mm (L)
Weight 110g
Turn
 14
 16
Kv
 1085rpm/v
 985rpm/v
Continuous Current 22A-32A
 17A-27A
Max. Current 40A(60S)
 36A(60S)
LiPo cells 2-4
 2-4
Web Site URL http://www.aircraft-world.com/prod_datasheets/hp/z30/z3013spec.htm
http://www.aircraft-japan.com/prod_datasheets/hp/z30/z3013spec.htm


Hyperion Z3013-14
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 12x6 9.9
 38.5
 7830
 381
 72
 1689.5
 256
 67.2
APC Thin Electric 11x5.5
 10.1
 27.5
 8445
 278
 71
 1383.2
 211
 76.0
APC Thin Electric 10x5 10.1
 21.0
 8760
 212
 67
 1084.4
 155
 73.1
APC Thin Electric 10x5
 13.4
 38.7
 11460
 519
 87
 1896.5
 369
 71.2
Hyperion Z3013-16
APC Thin Electric 13x6.5 10.1
 36.1
 6810
 345
 67
 1713.9
 244
 66.9
APC Thin Electric 12x6 10.1
 29.3
 7380
 296
 67
 1489.2
 210
 71.0
APC Thin Electric 11x5.5 13.4
 36.9
 9780
 494
 82
 1899.1
 340
 68.8

Hyperion Z3019

Hyperion Z3019   Return to Top
Motor Shaft 5mm
Motor Size 37mm dia. x 43.8mm (L)
Weight 142g
Turn
 10
 12
 14
Kv
 1070rpm/v
 900rpm/v 800rpm/v
Continuous Current 28A-37A
 27A-37A
 N/A
Max. Current 46A(60S)
 42A(60S) N/A
LiPo cells 2-4
 2-4
 N/A
Web Site URL http://www.aircraft-world.com/prod_datasheets/hp/z30/z3019spec.htm
http://www.aircraft-japan.com/prod_datasheets/hp/z30/z3019spec.htm

Hyperion Z3019-10
Propeller Volt Amps rpm Epwr Speed Thrust Ppwr Eff.
APC Thin Electric 12x6 10.1
 39.5
 8205
 399
 75
 1866.6
 300
 75.2
APC Thin Electric 11x5.5
 10.1
 29.9
 8670
 302
 73
 1464.3
 230
 76.2
APC Thin Electric 10x5 10.1
 23.3
 9090
 235
 69
 1171.2
 175
 74.4
APC Thin Electric 10x5
 13.4
 38.7
 11460
 519
 87 1896.5 369 71.2
Hyperion Z3019-12
APC Thin Electric 13x6.5 10.1
 37.8
 6480
 382
 64
 1542.0
 208
 54.5
APC Thin Electric 12x6 10.1
 28.8
 7230
 291
 66
 1425.4
 196
 67.4
APC Thin Electric 11x5.5 13.4
 35.4
 9570
 474
 80
 1812.1
 317
 66.8

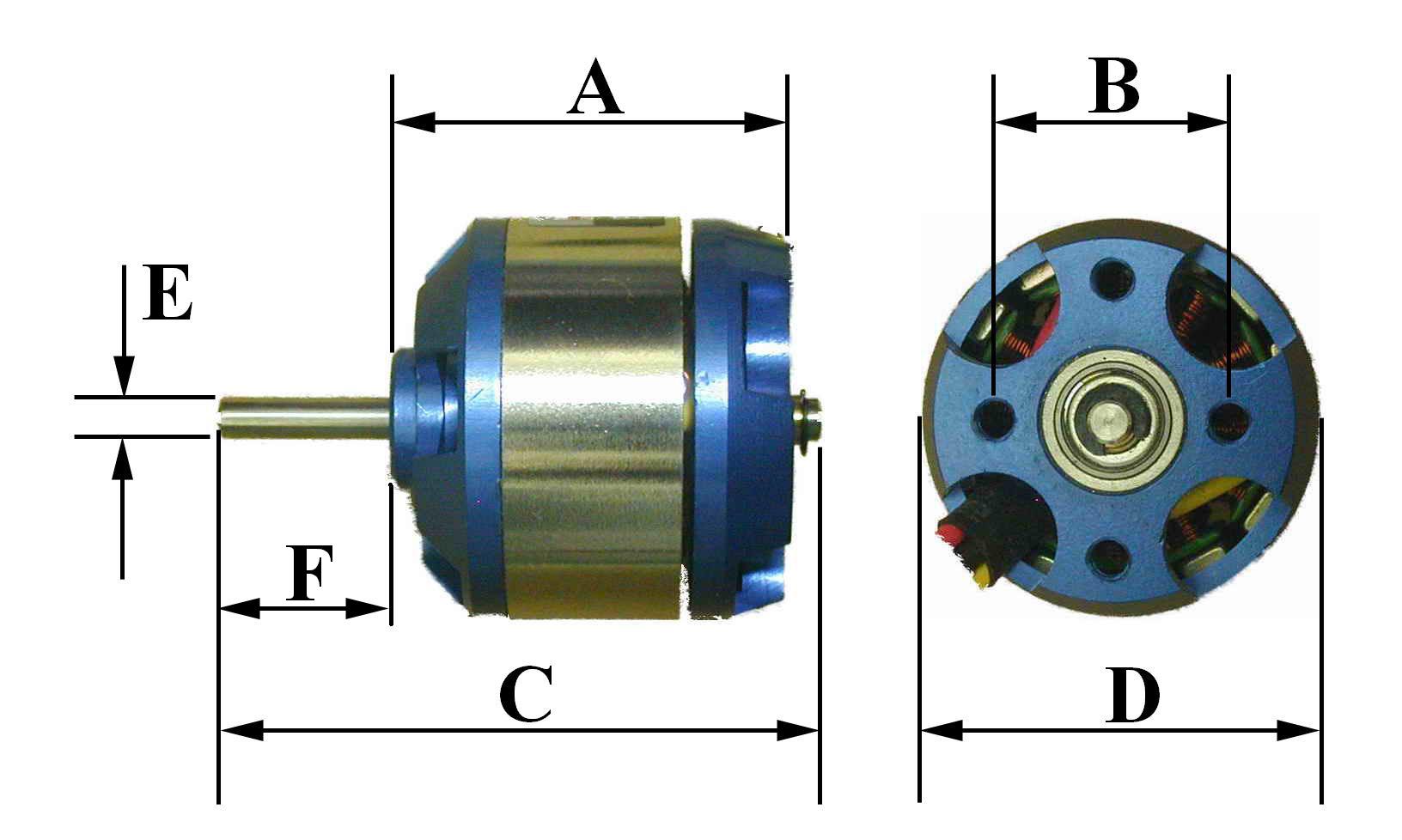

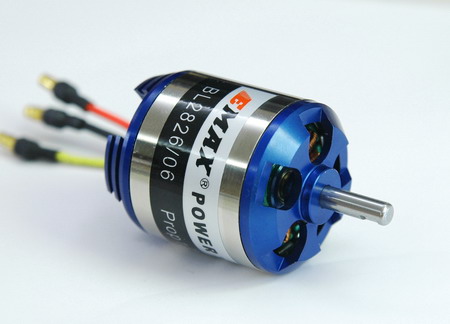

EMAX BL2826-06


A
 B
 C
 D
 E
 F
47mm
 25mm
 66mm
 38.3mm
 5mm
 14.5mm

Return to Top

Kv
 950rpm/v
Max Efficiency Current
 15 - 35A ( > 75%)
Max Efficiency 83%
Max. Current
 49A  60sec
LiPo cells 3 - 4
Shaft Diameter
 5mm
Stator Size
 30mm x 26mm
Weight
 182g
Puroduct URL
 http://www.emaxmodel.com/brushless-motor/bl2826.html

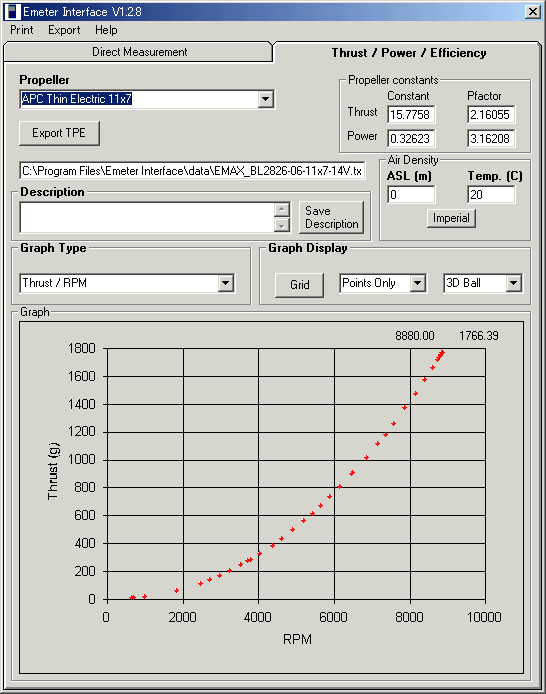

Measurement data
Lipo S
 Prop.
 rpm
 Current
 Speed
 Thrust
 Ppower
4
 APC S 11x6
 8325
 26.7A
 76km/h
 *1 1522g
 246W
4
 APC E 11x7 8880 32.9A
 95km/h
 1766g 445W
4
 Master Airscrew 12x7
 8130
 44.6A
 87km/h
 *1 2540g
 N/A
4
 APC E 12x8
 8010
 37.7A
 98km/h
 2025g
 495W
4
 APC E 13 x 6.5
 7665
 41.1A
 76km/h
 2205g
 534W
3
 APC E 11x7
 7800
 22A
 83km/h
 1335g
 216W
3
 APC S 11x6
 7560
 22A
 69km/h
 *1 1259g
 184W
3
 Master Airscrew 12x7 6615
 28.6A
 71km/h
 *1 1760g
 N/A
3 APC E 13x6.5
 6990
 30.7A
 69km/h
 1811g
 266W
*1 Measurement data by Tahmazo Thrustmeter.

Hyperion Z3025

Hyperion Z3025   Return to Top
Motor Shaft 5mm
Motor Size 37mm dia. x 50mm (L)
Weight 186g
Turn
 6
 8
 10
 12
Kv
 1255rpm/v
 985rpm/v 815rpm/v 665rpm/v
Continuous Current 40A-60A
 32A-42A
 27A-37A
 20A-30A
Max. Current
 85A(10S) 65A(10S) 54A(10S) 42A(10S)
65A(60S)
 52A(60S) 46A(60S) 38A(60S)
LiPo cells 2-3
 2-4
 2-4
 2-5
Web Site URL http://www.aircraft-world.com/prod_datasheets/hp/z30/z3025spec.htm
http://www.aircraft-japan.com/prod_datasheets/hp/z30/z3025spec.htm

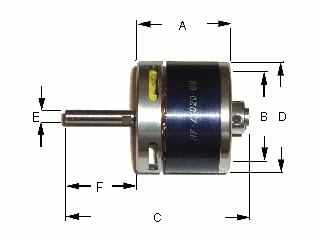

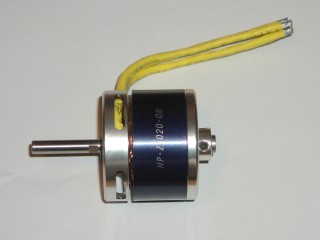

Hyperion Z4020


A
 B
 C
 D
 E
 F
40.5mm
 25mm
 80.5mm
 48.6mm
 6mm
 31.5mm

Return to Top

Motor Shaft
 6mm
Motor Size
 48.6mm dia. x 40.5mm (L)
Weight 284g
Turn
 8
 10
 12
 14
 16
Kv
 915
 748
 660
 574
 504
Max Efficiency Current 45-65A
 40-60A
 37-52A
 35-50A
 33-48A
Max. Current 30sec 75A
 70A
 65A
 62A
 60A
Apprication
 APC S 10x7
APC S 11x7
 APC E 13x8
APC E 14x7
 N/A
 APC E 15x8
 APC E 16x8
APC E 16x10
Web Site URL
 http://www.aircraft-world.com/prod_datasheets/hp/z40/z40all.htm
http://www.aircraft-japan.com/prod_datasheets/hp/z40/z40all.htm
Show Barbara Jean Power Unit report.

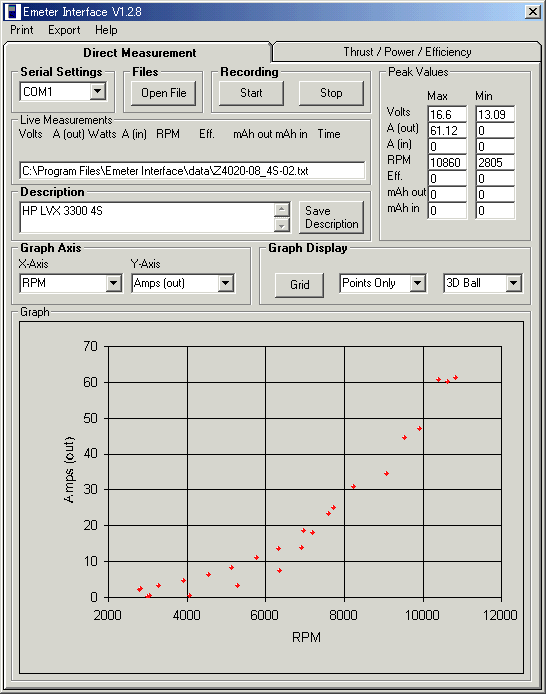

Z4020-8 Measurement data
Battery
 Propeller Volt
 Amps
 rpm
 Epwr
 Speed
 Trust
 Ppwr
 Eff.
HP-LVX3300-4S APC E 11x7
 13.11
 61.12
 10860
 801.28
 116
 2728.7
 615
 76.8
APC S 10x7
 13.35
 45.82
 11340
 571.65
 121
 *1 2453.2
 460
 80.5
APC S 11x6
 13.18
 52.93
 10980
 697.62
 100
 2622.4
 569
 81.6
PQ-3300XP-5S
APC S 10x7 16.49
 60.37
 13170
 995.50
 140
 *13308.9 721
 72.4
AN E Carbon 10.5x7 16.60 54.21
 11820
 899.82
 126
 *13523.3 569
 63.2
APC S 11x7 16.03
 75.11
 13260
 1204.01
 141
 *14464.6 977
 81.1
*1 Predicted value (APC S k=27.253 Aeronaut k=22.765)

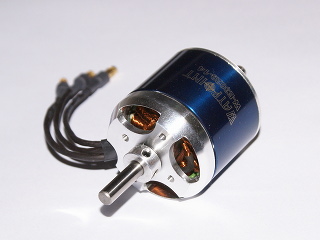

Waypoint W-E3020

Click to enlarge
Return to Top

Motor Shaft
 5mm
Motor Size
 36mm dia. x 37.6mm (L)
Kv
 988 rpm/V
Continuous Current
 36A
Max. Current
 42A
Weight including connector 155g
LiPo cells
 3-4
Web Site URL
 wpoint/eblesc/w-manual.htm

Waypoint W-3020-14 Measurement data by Hyperion Emeter & Tahmazo thrustmeter.
Propeller Volt Amps rpm Epwr Speed Thrust *1 Thrust Ppwr Eff.
APC E 11x5.5 10.43 25.59 7920 266.90 66km/h 1204.2 1205
 171 64.1
APC E 12x6 10.22
 31.69
 7440
 323.87
 68km/h 1515.1
 1780
 216
 66.7
APC E 13x6.5 10.56
 41.09
 7200
 432.68
 71km/h 1929.6
 2000
 293
 67.7
ACP E 11x7
 12.94
 34.23
 8925
 442.94
 95km/h 1785.8
 N/A
 331
 74.7
*1 Measurement data by Tahmazo Thrust meter.

Modelmotor AXI4120/14


    Return to Top
Motor Size 49.8mm dia 55.5mm
Shaft
 6mm
Kv
 660rpm/v
Max Efficiency Current
 20 - 40A
Max. Current
 55A  60sec
LiPo cells 4 - 5
Weight
 320g
Apprication
 12x8 - 13x11
Web Site URL
 http://www.modelmotors.cz/index.php?page=61&product=4120&serie=14&line=GOLD
