EDF Motor SelectionUpdate enPower-450DFII Mega Power DF210-8XL Hyperion Y22S Hyperion Y22L Zeta Plus 2025-4600 Hyperion P191322mm-24mm dia
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

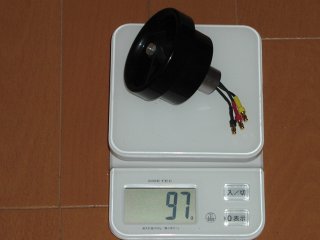

| enPower-450DFⅡ |
|
| Motor Shaft | 3mm |
| Motor Size |
21mm dia. x 40.1mm (L) |
| Kv |
4850kv |
| Max. Current | 26A |
| Continuous Current | 15A-23A |
| Weight |
68g |
| Working Voltage |
11.1V (3cell LiPo) |
| Application | 56mm EDF enP-JET56 Midi upto 23A thrust 635g *1 |
| Remarks | This motor is the
most powerful in enRote's 22mm dia. motors. en-JET56 supports dia under
22mm. |
){kind=link}

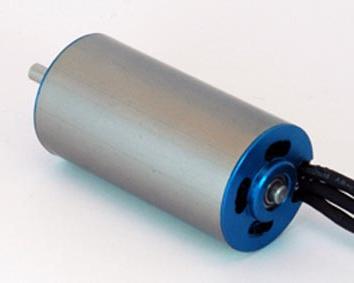

Mega Power DF210-8XL
Return to Top
| Mega
Power DF210-XL |
|
| Motor Shaft | 3mm |
| Motor Size |
21mm dia. x 51mm (L) |
| Kv |
5100kv |
| Max. Current | 32A (450W) |
| Continuous Current | 10A-28A |
| Weight |
95g (including plug) |
| Working Voltage |
11.1V - 14.8V (3-4cell
LiPo) |
| Application | 56mm EDF enP-JET56 |
| Remarks | This motor is the
most powerful for enP-JET56 (Turbo Fan 55). en-JET56 supports dia under
22mm. |

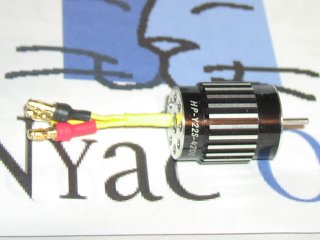

Hyperion Y22-S
Return to Top
| Hyperion Y22-S | |
| Motor Shaft | 2.00mm |
| Motor Size |
24.3mm dia. x 30mm (L) |
| Kv |
2850, 3600, 4200, 5000,
6000 |
| Max. Current | 20A ? |
| Weight |
48g |
| Working Voltage |
7.4 - 11.1V |
| Products URL | http://www.aircraft-japan.com/prod_datasheets/ hp/y22/y22s.htm |
| Application | 3600kv: GWS EDF55, EDF64 4200kv:VASAFAN55 Midi ALFA EDF60/15 up to 14A 6000kv: GWS EDF55 2S Lipo |
){kind=link}

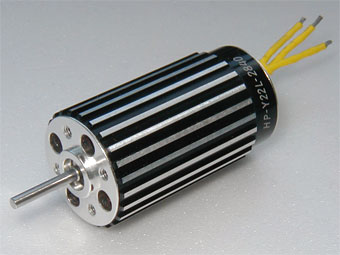

Hyperion Y22-L
Return to Top
| Hyperion Y22-L | |
| Motor Shaft | 2.30mm |
| Motor Size |
24.3mm dia. x 47mm (L) |
| Kv |
2840 3600 3900 4400 5000 |
| Max. Current | 27A ? |
| Weight |
70g |
| Working Voltage |
7.4 - 11.1V |
| Products URL |
http://www.aircraft-japan.com/prod_datasheets/ hp/y22/y22l.htm |
| Application |
3900kv: Wattage 400FAN,
HyperFlow
56 4400kv: VASAFAN55, VASAFAN64, ALFA EDF60/25 5000kv: VASAFAN55, Midi ALFA EDF60/15 upto 21A |
| GWS EDF55 &
EDF64 are not fit this motor. EDF55 & EDF64 can be used only 2mm
motor shaft. Hyperion new BL motor, P1913-06M & P1913-08M released
for GWS or other 2mm shaft EDF. Propeller adaptor must be
modified for using EDF55 & EDF64. Little Bellanca released 2.3mm propeller adaptor for Alfa model 60/15. It is mainly used for Hacker B20-12L. |
|
){kind=link}
Zeta Plus 2025-4600
Return to Top
| Zeta-Plus 2025-4600 | |
| Motor Shaft | 2.00mm |
| Motor Size |
20mm dia. x 40mm (L) |
| Kv |
4600kv |
| Max. Current | 20A ? |
| Weight |
60g |
| Working Voltage |
7.4 - 12.6V |
| Products URL |
|
| Application | GWS
EDF55 |
){kind=link}
Hyperion P1913-0xM
Return to Top|
|
P1913-06M | P1913-08M |
| Motor Shaft | 2.0mm / 2.3mm | |
| Motor Size |
23.65mm dia. x 26.8mm (L) | |
| Weight | 44.5g | |
| Max Cell |
3 |
4 |
| Max. Current | 17A |
14A |
| Kv | 3700 |
2880 |
| Application | GWS EDF55, GWS
EDF64, Gear down |
|
| Products URL |
http://www.aircraft-japan.com/prod_datasheets/ hp/p19/p19all.htm |
|
